Rotary Indexing Machines

The rotary indexing system is a sophisticated and highly efficient mechanism used in various industries to streamline production processes. RNA design and develop rotary indexing machines that are tailored to the customer’s specific applications.

SED TUBE FILTER ASSEMBLY MACHINE Screw Assembly Station

FEATURES

- High precision and repeatability
- Floor-space saving
- Semi/fully automated systems
- Tailored to the customer’s specific applications

Having extensive experience in rotary assembly and testing machinery, RNA have designed and developed a broad range of solutions from simple two-station rotary machines up to highly complex 10-station rotary machines.

RNA rotary indexing machines are especially well-suited for assembly machines that requires a compact installation space. We carefully evaluate the context of your operations, depending on applications, combine rotary indexing tables with our custom machines to suit our customers’ diverse needs.

RNA Rotary Indexing Machines

  • Tailored to the customer’s specific applications
  • Reliable, high quality
  • High precision and repeatability
  • High productivity
  • Cost effective
  • Low maintenance
  • Floor-space saving
  • Easy to upgrade to suit various parts
  • Semi or fully automated systems

Key Components of a Rotary Indexing Machine

1. Bulk Hoppers
Bulk Hoppers
1/5

Bulk Hoppers

Standard off the shelf or custom bulk storage solutions; various hopper size (depending on application)

Contact us
2. Feeding and Handling
3. Rotary Indexing Table
4. Workstations
5. Integrated Control System with HMI
Special requirements are available upon request
Bulk Hoppers
1/5

Bulk Hoppers

Standard off the shelf or custom bulk storage solutions; various hopper size (depending on application)

Links:

Contact us
Feeding and Handling
2/5

Feeding and Handling

RNA supply a wide choice of bowl feeders in many different formats; Various feeder size

Links:

Contact us
Rotary Indexing Table
3/5

Rotary Indexing Table

High precision indexing table; up to 16 stations (determined by the mechanism according to the customer’s requirements).
Contact us
Workstations
4/5

Workstations

Examples:
- Parts Feeding and Handling
- Robots
- Vision Inspection
- Printing
- Labelling
- Testing
- Lasers
- Riveting, soldering, screw drivers
- Almost any secondary processes
Contact us
Integrated Control System with HMI
5/5

Integrated Control System with HMI

Easy to use control software for intuitive teaching, configuration and calibration
Contact us
Key Benefits of Rotary Indexing

Enhanced Precision

The rotary indexing system offers exceptional accuracy, reducing errors and improving the quality of the assembled products.

Increased Productivity

By eliminating manual handling and optimizing production flow, the rotary indexing system enhances overall productivity and output.

Flexibility

The system can be easily adapted to accommodate different product sizes and assembly tasks, providing versatility in manufacturing operations.

Cost Efficiency

With reduced labour requirements and improved production rates, the rotary indexing system contributes to cost savings over time.

Space Optimization

The compact design of the rotary indexing system optimizes floor space, making it suitable for assembly workstations with limited areas.

What is a Rotary Indexing System?

The rotary indexing system is a sophisticated and highly efficient mechanism used in various industries to streamline production processes. This automation technology enables the precise movement and positioning of workpieces at predetermined intervals, allowing assembly workstations to perform specific tasks with exceptional accuracy.

How does a rotary indexing system work?

The rotary indexing system is a type of automation technology that facilitates the rotational movement of workpieces within a manufacturing or assembly line. It operates on the principle of indexing, which involves moving the workpiece from one station to the next in fixed angular increments or positions. The rotary motion can be continuous or step-by-step, depending on the specific production requirements.

Rotary Indexing Machines Applications

  • Assembly
  • Machining
  • Testing
  • Printing
  • Positioning and transfer
  • Parts separation

Applications

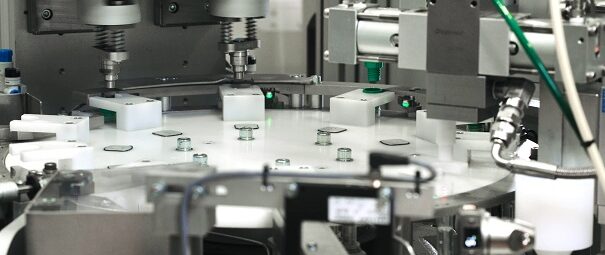

RNA - Vial Filling and Labelling Machine - Vial loading1 605 454

Automated Vial Filling and Labelling Machine

Read More

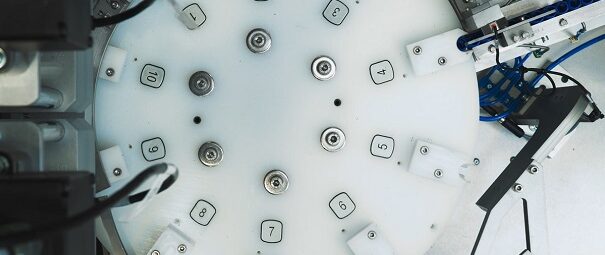

SED TUBE FILTER ASSEMBLY MACHINE Rotary Indexing Table

SED Tube and Filter Assembly Machine

Read More

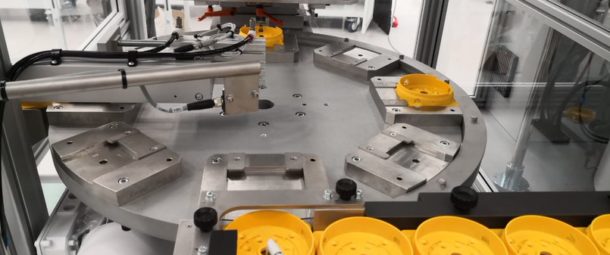

Special Purpose Machinery - Switch body pad printing machine with rotary indexing table

Switch Body Pad Printing Machine with Rotary Indexing

Read More

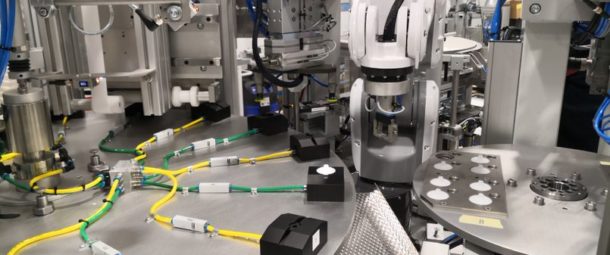

Custom assembly machine with rotary indexing table for medical filters.

Medical Filter Assembly Machine for Overmoulding

Read More

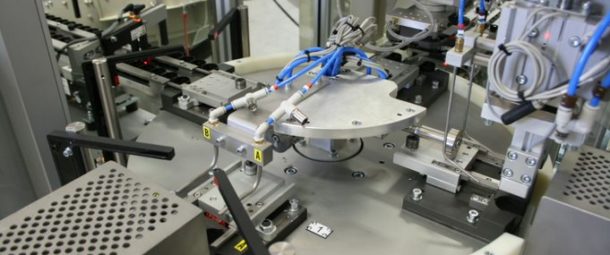

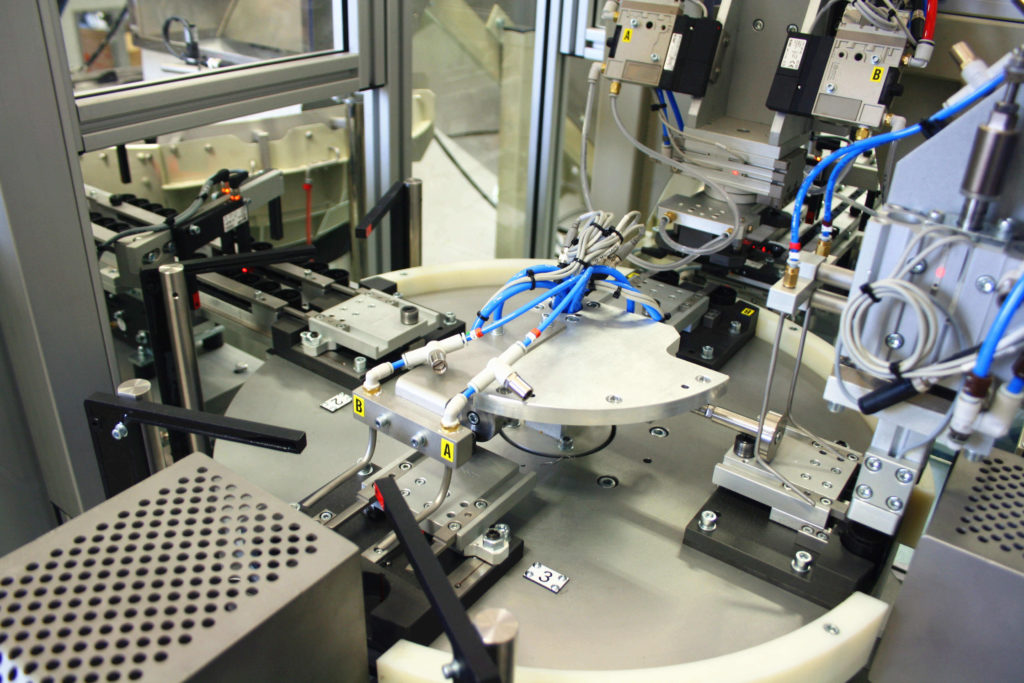

Automated cap assembly and indexing machine.

Automated Cap Assembly and Indexing System

Read More
×
