EcoType™ Bowl Feeders

EcoType™ Series | Cost efficient vibratory bowl feeder by RNA

Make an Enquiry

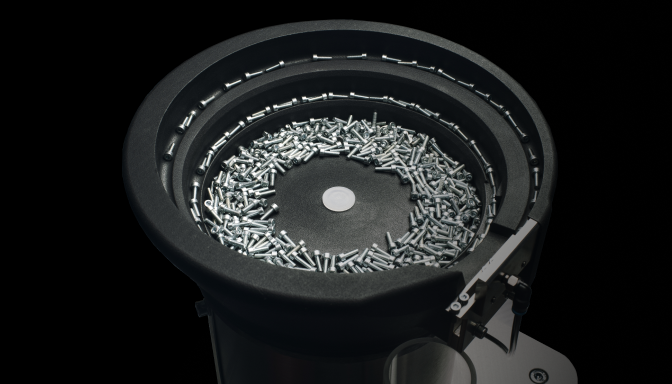

EcoType Screw Feeder

RNA EcoType™ Bowl Feeders

Ideal for industrial component parts - screws, nuts, pins, rivets, bolts, nails, fasteners, washers and O-rings

screws bowl feeders

The EcoType™ series is largely standardised and for simple component parts. All feeding systems are based on our vibratory bowl feeder and are free-flowing and without separation. They offer short throughput times and favourable prices.

All feeding systems in the EcoType™ series are based on our vibratory feeders sizes 200 to 400, and are free-flowing. These feeding systems are exclusively single-track and without separation, ideal for industrial component parts, commonly screws, nuts, pins, rivets, bolts, nails, fasteners, washers and O-rings with a feed rate up to 200 parts per minute.

The standardised EcoType™ bowl feeders are made from aluminium and internally lined with a polyurethane coat. Due to the simplicity of the part geometries, very little design effort is required for sorting. In addition, we can access a large database of simple feeding solutions here.

EcoType™ feeding systems from RNA are available with short throughput times and favourable prices. Contact us and we will be happy to help you choose which automated vibratory bowl feeders are most appropriate for your application.

1. Bowl Top
Bowl Top
1/4

Bowl Top

Cylindrical Bowls
ZSB200/250/400

Stepped Bowls
TAG200/250/400
Contact us
2. Drive Unit
3. Control Box
4. Escapement (Optional)
Special requirements are available upon request
Bowl Top
1/4

Bowl Top

Cylindrical Bowls
ZSB200/250/400

Stepped Bowls
TAG200/250/400
Contact us
Drive Unit
2/4

Drive Unit

Drive Unit options for EcoType™
SRC-N200
SRC-N250
SRC-N400
Contact us
Control Box
3/4

Control Box

Control box for EcoType™
ESK2000
Contact us
Escapement (Optional)
4/4

Escapement (Optional)

Part presentation for next process
Contact us
Specifications
Examples of your products

Drive Unit Type

Bowl Type

Filling Volume

Materials

Control Box

SRC-N200

ZSB 200

TAG 200

Cylindrical Bowls

Stepped Bowls

From 0.8L

Aluminium

ESK2000

SRC-N250

ZSB 250

TAG 250

Cylindrical Bowls

Stepped Bowls

From 1.6L

Aluminium

ESK2000

SRC-N400

ZSB 400

TAG 400

Cylindrical Bowls

Stepped Bowls

From 7L

Aluminium

ESK2000

Product

Screw size

Length (mm)

Rating (parts/min)

M3

M4

M5

M6

8-26

10-26

10-26

10-26

60

60

60

60

Product

Part diameter (mm)

Length (mm)

Rating (parts/min)

3

3

4

4

5

5

6

6

8

5-20

20-40

6-20

20-40

8-20

20-40

8-20

20-40

12-50

100

60

100

60

100

60

100

60

60-100

4-8

8.1-12

12.1-22

1-2

1.5-2.5

1.8-4

100

100

100

2

2.5

3

4

5

6

7

8

100

100

100

200

200

200

200

200

100

100

100

100

100

100

100

100

7-8

8-9

9-10

10-12

12-14

14-16

0.5

0.8

1

1.6

1.6

1.6

200

200

200

200

160

160

Contact us
Contact us
Key Benefits

Cost-Efficiency

Throughput of up to 200 pcs/min, providing significant time savings for high system efficiency and economic production

Repeatability

The tried and tested design ensures accurate and consistent throughput and correct orientation

Modular and Customisable

Alterations of standard devices making them deployable across a range of applications

Reliability

Gentle, smooth feed characteristics, simple to service

Durability

Polyurethane coating protects the parts and ensure long running times, consistent performance and reduced noise

Applications

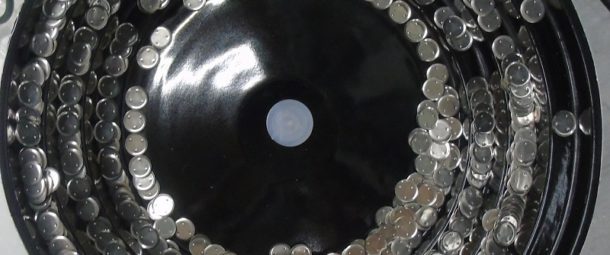

EcoType Bowl Feeder feeds Base Covers

EcoType™ Bowl Feeder feeds Base Covers

Read More

Component:
Base Cover Ø10 mm x 0.66 mm

Speed:
30 parts per minute

Equipment:
TAG-Z 200 Aluminium stepped
PU200 Polyurethane spray coating
SRC-N 200-2 Drive Unit
ESK 2001 Controller

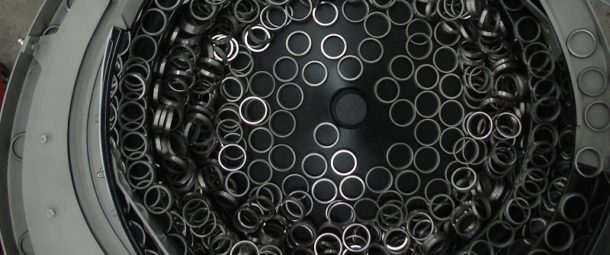

EcoType Bowl Feeder feeds Valve Seat Inserts

EcoType™ Bowl Feeder feeds Valve Seat Inserts

Read More

Component:
Valve Seat Insert Ø30.5 mm x 5.55 mm

Speed:
15 parts per minute per lane

Equipment:
TAG-N 400 Aluminium stepped
PU400 Polyurethane spray coating
SRC-N 400-2 Drive Unit
ESK 2000 Controller

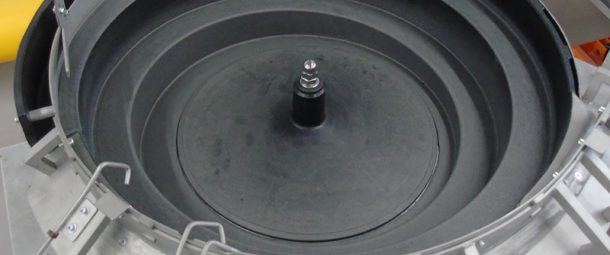

EcoType Bowl Feeder feeds rivet pins

EcoType™ Bowl Feeder feeds Rivet Pins

Read More

Component:
Rivet Pin – 2 types
1: Head Ø = 4.50mm x Body Ø = 2.86mm x 45.72mm long
2: Head Ø = 6.45mm x body Ø = 3.88mm x 51.11mm long

Speed:
400 parts per minute

Equipment:
TAG-N 400 Aluminium stepped
PU400 Polyurethane spray coating
SRC-N 400-2 Drive Unit
ESK 2000 Controller

RNA-3D-printed-Vibratory-Bowl-Feeder-Sorting-and-correctly-oriented-transfer-of-rubber-rings.jpg

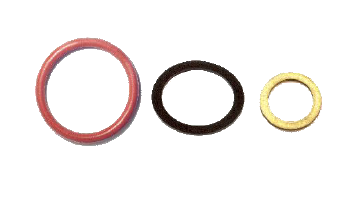

EcoType™ Bowl Feeder for O Rings

Watch Video
EcoType Bowl Feeder feeds pins

EcoType™ Bowl Feeder feeds Finished Pins

Read More

Component:
2 sizes of Finished Pin
1. Ø2.13 mm x 15.2 mm long
2. Ø1.02 mm x 9.72 mm long

Speed:
12 parts per minute

Equipment:
TAG-Z 200 Aluminium stepped
PU200 Polyurethane spray coating
SRC-N 200 Drive Unit
ESK 2000 Controller

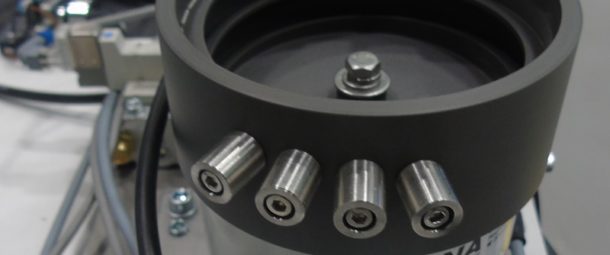

EcoType Bowl Feeder handles Pins

EcoType™ Bowl Feeder feeds Ceramic Pins

Read More

Component:
Ceramic Pin Ø0.5mm x 6mm ±0.1 mm

Speed:
6 parts per minute

Equipment:
ZAD-Z 100 Aluminium stepped
SRC-N 100 Drive Unit
ESK 2000 Controller
×

Watch
