FlexCube Series

RNA FlexCube flexible vibrator feeders offer high performance part feeding, pre-orientation and optimal surface distribution of bulk parts and components.

FlexCube Series

How it works

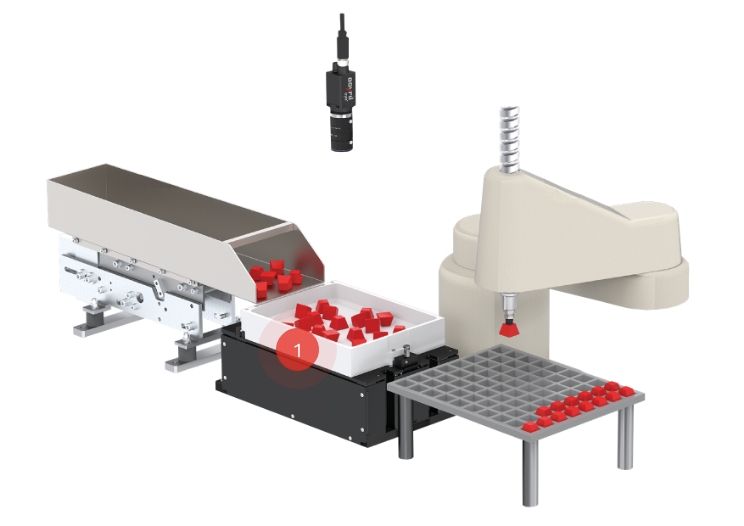

  • Homogeneous parts separation and orientation using the innovative 3-Axis Vibration Technology
  • Detection of correctly oriented parts by vision system
  • Part pick from platform and assembly by robot

Parts are spread homogeneously on the feeder surface and can even be systematically oriented in many cases by using intelligent vibration patterns in combination with a structured plate. Entire part families can thus be handled with a single feeder, making the system highly future-proof.

3-Axis Vibration Technology

  • FlexCube 3-axis vibration technology allows moving parts freely on a platform in different directions.
  • Using RNA’s intuitive HMI interface, the platform vibration parameters can be tuned specifically for an optimal part distribution and fastest resulting cycle time. A functioning part feeding recipe is typically created in less than 5 minutes
  • Systematic part orientation can be achieved with intelligently structured platforms (grooves, holes, nests).

FlexCube Key Benefits

  • Compatible with all part geometries: 99% of parts can be fed on the FlexCube feeders – including complex geometries and delicate materials
  • Minimum production changeover times enable flexible, future-proof production systems
  • Extremely gentle part handling due to 3-axis vibration technology : parts can be moved in all directions, including the optimal choice of flipping amplitude for each part. Minimal abrasion as parts do not need to be recirculated. Platform purge possible.
  • Advanced reliability and durability due to State-of-the-Art Voice Coil Technology ; no compressed air
  • Precise part detection thanks to integrated, adjustable backlight / optional RNA vision inspection system
  • Systematic part orientation can be achieved with intelligently structured platforms (grooves, holes, nests)
  • Easy configuration and installation through feeder control center software
  • Simple system integration with numerous software communication plugins with the most popular robot brands.
  • Simple Communication with all types of automation systems based on standard communication protocols TCP/IP, Modbus TCP
  • Preconfigured fieldbus gateway/hardware adapter available for EtherCAT, EtherNet/IP, PROFINET

FlexCube Range

FlexCube 50

FlexCube 50

Read more

FlexCube 50

FlexCube 50

Ideal flexible feeder for small components from 0.1 to 5 mm for flat and cube-like parts, and up to 10 mm for long parts (e.g. pins and needles)

Dimensions

Size of vibratory platform:

45 x 34 mm; ~50 mm diagonal
1.3 x 1.8 in; ~2 in diagonal

Feeder size (L x W x H)

293 x 46 x 138 mm
11.5 x 1.8 x 5.4 in

Hopper sizes

10 cm3 / 110 cm3

Video

FlexCube 80

FlexCube 80

Read more

FlexCube 80

FlexCube 80

Ideal flexible feeder for small components from 3 to 10 mm for flat and cube-like parts, and up to 15 mm for long parts (e.g. pins and needles)

Dimensions

Size of vibratory platform:

67 x 52 mm; ~80 mm diagonal
2.6 x 2.1 in; ~3.1 in diagonal

Feeder size (L x W x H):

320 x 61 x 138 mm
12.6 x 2.4 x 5.4 in

Hopper sizes

160 cm3

Video

FlexCube 240

FlexCube 240

Read more

FlexCube 240

FlexCube 240

Ideal flexible feeder for components from 5 to 40 mm for flat and cube-like parts, and up to 50 mm for long parts (e.g. pins and needles)

Dimensions

Size of vibratory platform:

195 x 150 mm; ~250 mm diagonal
7.6 x 5.9 in; ~10 in diagonal

Feeder size (L x W x H):

300 x 171 x 132 mm
11.8 x 6.7 x 5.2 in

Hopper sizes

2L/3L

Video

FlexCube 380

FlexCube 380

Read more

FlexCube 380

FlexCube 380

Ideal flexible feeder for components from 15 to 60 mm

Dimensions

Size of vibratory platform:

254 x 325 mm; ~380 mm diagonal
10 x 12.8 in; ~14.96 in diagonal

Feeder size (L x W x H):

499 x 257 x 307 mm
19.6 x 10.1 x 12.1 in

Hopper sizes

10L

Video

FlexCube 530

FlexCube 530

Read more

FlexCube 530

FlexCube 530

Ideal flexible feeder for small components from 30 to 150 mm

Dimensions

Size of vibratory platform:

427 x 371 mm; ~530 mm diagonal
16.8 x 14.6 in; ~20.9 in diagonal

Feeder size (L x W x H):

600 x 372 x 320 mm
23.7 x 14.7 x 12.6 in

Hopper sizes

15L

Video

× Close

FlexType P

RNA has developed a new, flexible feeding system FlexType P based on our 3-axis FlexCube vibration platform technology.

FlexType P offers you a pre-configured feeding system adapted to your parts that is based on our FlexCube vibration platform with hopper, parts recirculation and camera system.

RNA also offers dual systems, as illustrated, with two platforms operating independently in parallel. Models with hopper, quick emptying system and parts recirculation for short changeover times are optionally available.

  • One or two independent vibrtation platforms; A central robot
  • Integrated hopper- and platform purge options
  • Minimal production changeover times
  • Easily integrated with all major brands of industrial robots
  • All components are controlled using a Beckhoff PLC featuring an an intuitive HMI interface.

Learn more about RNA FlexType P.
