VariPic™

RNA’s VariPic™ flexible feeding system is a compact and proven package for handling complex and varied products, pre-configured and ready to use for fast integration.

VariPic Flexible Feed System

Features

- Designed for robot picking
- High resolution vision system
- Robot end of arm tool design
- Various hopper size
- Various belt surfaces

The solution combines robotics with intelligent vision software to deliver a complete system for flexible part feeding.

Included in VariPic™

1. RNA VariPic™ Conveyor
RNA VariPic™ Conveyor
1/5

RNA VariPic™ Conveyor

Our complete range of products from stock for conveyor belts includes mini-band conveyors type FP 15E and FP 15D, conveyors type FK 120 and FP 120, controls and accessories.

Contact us
2. A 6-axis Robot
3. Vision Inspection System
4. RNA Bulk Hopper
5. Integrated control system with HMI
Special requirements are available upon request
RNA VariPic™ Conveyor
1/5

RNA VariPic™ Conveyor

Our complete range of products from stock for conveyor belts includes mini-band conveyors type FP 15E and FP 15D, conveyors type FK 120 and FP 120, controls and accessories.

Links:

Contact us
A 6-axis Robot
2/5

A 6-axis Robot

A suitable 6-axis robot depending on payload and reach for handling and manipulating the products

Links:

Contact us
Vision Inspection System
3/5

Vision Inspection System

RNA automated vision inspection systems are designed to cater for a wide range of components. The systems have been developed to meet high speed quality control requirements for 100% inspection.

Links:

Contact us

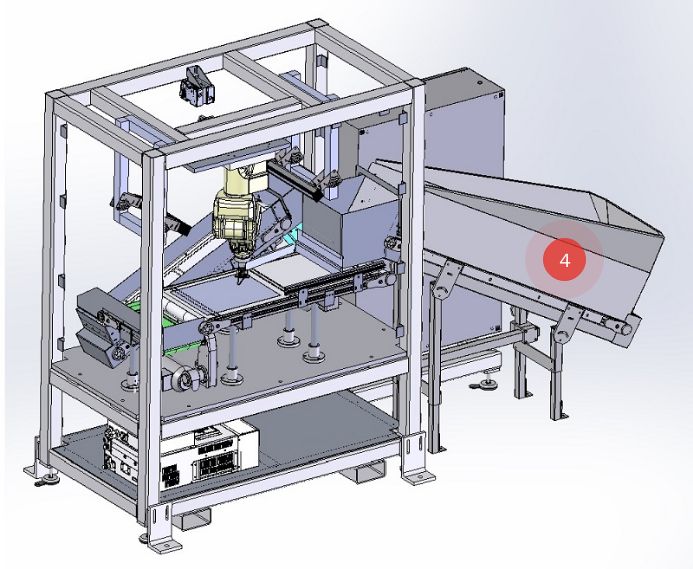

RNA Bulk Hopper
4/5

RNA Bulk Hopper

Standard off the shelf or bespoke bulk storage solutions; various hopper size (depending on application)

Links:

Contact us
Integrated control system with HMI
5/5

Integrated control system with HMI

Easy to use control software for intuitive teaching, configuration and calibration
Contact us
Key Benefits

High availability

High availability for random part feeding, constant performances with no jams and misfeeds

Great flexibility

The VariPic™ is the ideal feeder when flexibility is demanded in production. It allows for almost endless product line variations, feeding parts of any shape and geometry into any machine. Compatible with complex part geometries

Quick and easy part changeover

Part changeover is rapid; selection on the user-friendly interface and a quick change-out of the end of arm tooling. Seamless, software-based product changeovers in minutes

Precise part detection

Reliable, accurate and high speed vision system for part detection

Easy configuration and installation

Fast and easy configuration adjusting to changes and demands

A variety of conveyor combinations

The VariPic™ offers a complete range of conveyor combinations depending on cell layout needs.

Watch

RNA VariPic™ combines feeding, vision technology and robotics to handle Typhoon valve seat with Springfit™ disposable mask skeleton

VariPic™

Features
Included in VariPic™
Downloads
  • Specifically designed for robot picking
  • Integrated high performance VariPic™ Vision systems
  • Effective part separation
  • User friendly, HMI controls interface
  • Robot end of arm tool design, customised to part
  • Various hopper size
  • Various belt surfaces (flat / groove / anti-roll / other)
  • RNA VariPic™ Conveyor
  • A suitable 6-axis robot depending on payload and reach
  • Vision Inspection System
  • Conveyor feeding system (depending on application)
  • RNA Hopper (depending on application)
  • Integrated control system with HMI
  • Interlocked guarding
If you have a question or would like to enquire about VariPic™ please ask us.
