Product:
Transfer Loops
Solution:

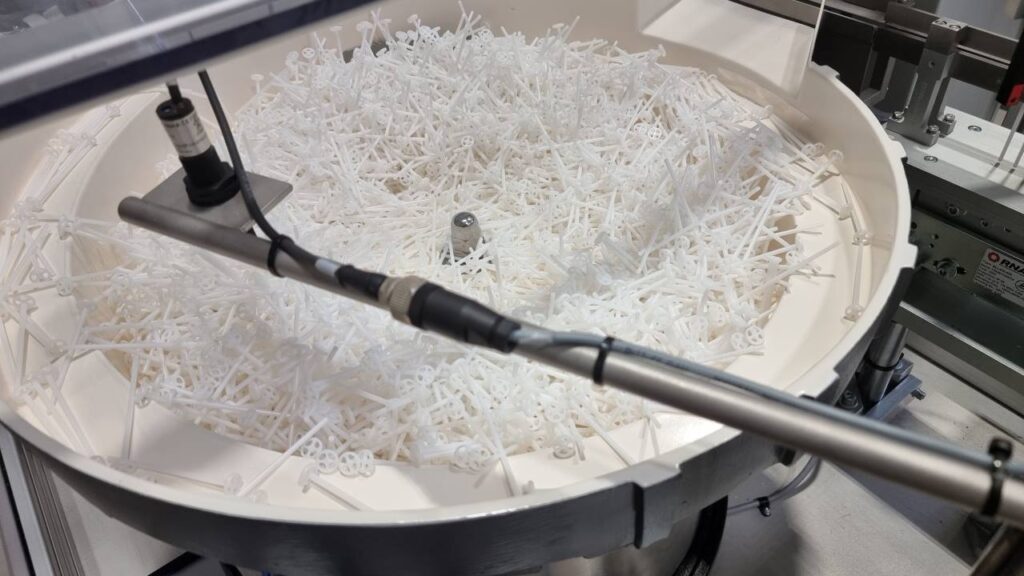

The Transfer Loops are fed and orientated by a vibratory bowl feeder, and then are discharged from the feeder to the linear out-feed. A Tic Toc Escapement separates and presents one component part at a time for collection by the pick and place handling unit. The pneumatically operated rotating pick and place handling unit then places component parts in a fixed tray – 20 components each way with 40 components loaded in total. The tray counts and releases 40 components at a time into the bagging machine.
Speed:
40 components per minute.
Scope:
- Vibratory Bowl Feeder
- Conveyor Out-feed
- Tic Toc Escapement
- Rotate Pick and Place Handling Unit
- Bagging Machine
- Control System complete with HMI
Key features:
- Stepped bowl
- FDA approved polyurethane
- Smooth and gentle handling
- Pharmaceutical design
