Bowl Feeder to feed, count, and dose Stir Sticks

Bowl Feeder to feed, count, and dose Stir Sticks

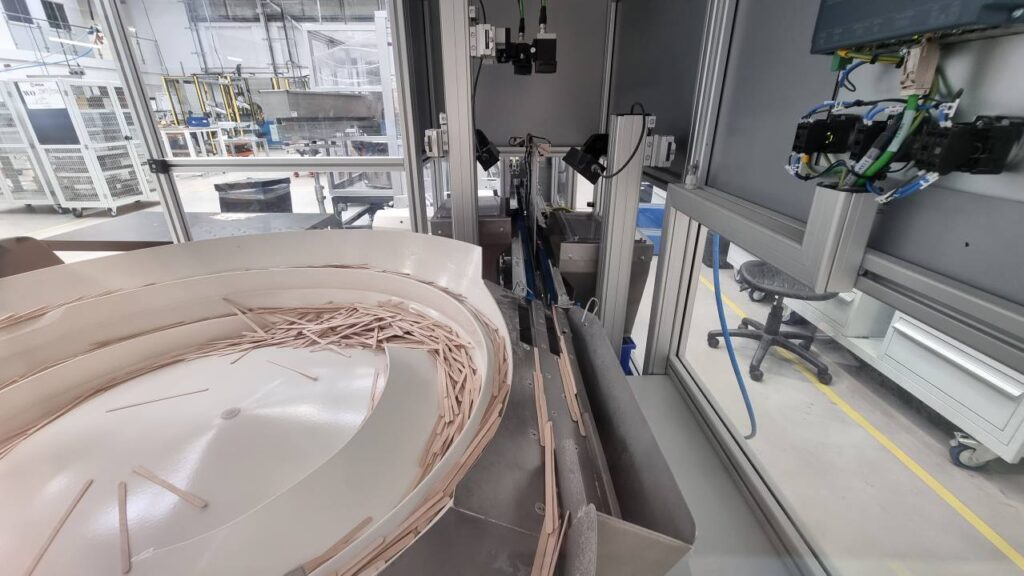

Vibratory bowl feeding and handling system to to feed, count, and dose Stir Sticks at a speed of 40 parts per minute.

RNA skills:-

  • Machine building and integration
  • Machine and process control
  • Bowl feeding
  • Vision Inspection and Poka Yoke
  • Project management

Product:

Stir Sticks

Solution:

The Transfer Loops are fed and orientated by a vibratory bowl feeder, and then are discharged from the feeder to the conveyor out-feed.

A vision inspection station is fitted with the conveyor out-feed to check stir sticks as they pass through. Good parts will be identified and continue along the conveyor. Bad parts will be identified and ejected from the system into a reject container.

The pneumatically operated bomb door escapement collects and releases 40 components at a time into the bagging machine.

Speed:

40 components per minute.

Scope:

Key features:

  • Conical bowl
  • FDA approved polyurethane
  • Smooth and gentle handling
  • Vision inspection and quality control
