Vibratory bowl feeding and handling system to feed and orientate Pharmaceutical Caps

RNA skills:-

  • Machine building and integration
  • Machine and process control
  • Bowl feeding
  • Project management
  • Developed with GAMP Pharmaceutical standards

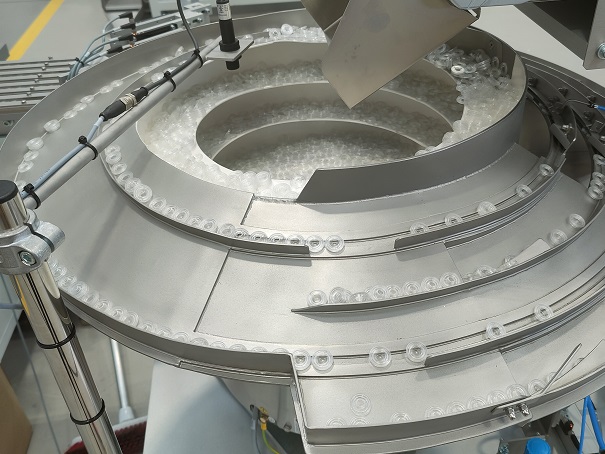

Bowl Feeder feeds and orientates Pharmaceutical Caps

Product:

Cap Ø10.45mm x 10.10mm long

Performance:

40 pcs/min

Bowl Type:

Cylindrical bowl

The system consists of:

  • ZSB-BA 250(350)-20-125 – 304 Stainless steel cylindrical radial fixing bowl
  • FDA400: FDA approved polyurethane coating to suit component
  • SRC-N 250-2 Bowl feeder drive unit
  • ESK 2001 twin channel digital interface variable speed controller with built in sensor inputs
  • SLL 400-600 linear drive unit Fitted with a tooled track approximately 700 mm in length
  • EGF track high level sensor with stand inc cable plug to suit ESK/ESR controller

Finishes:

Component contacts: Stainless grade 304 FDA approved polyurethane.
Non-contacts: Stainless grade 304, anodised / painted aluminium and painted mild steel.
