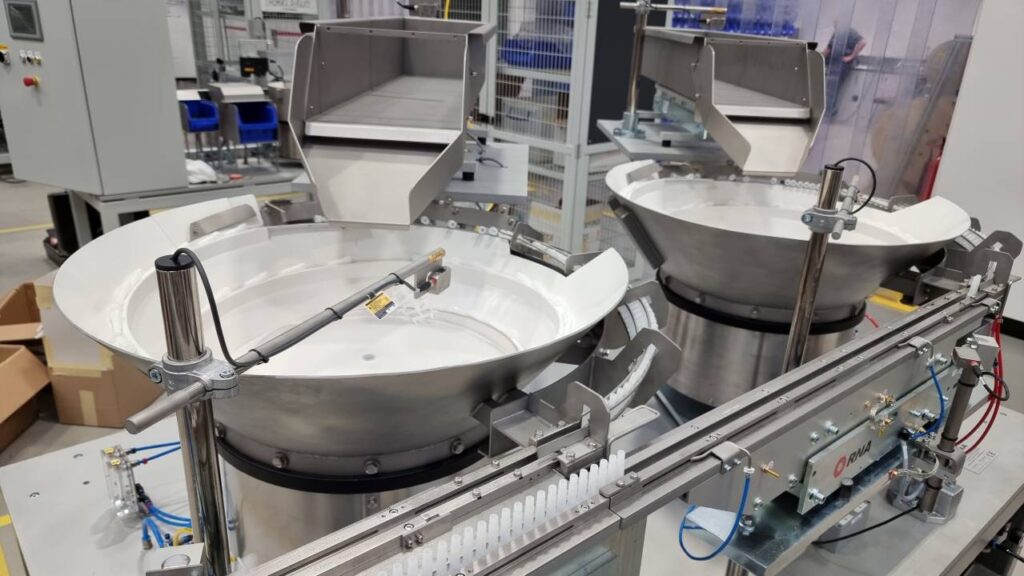

Vibratory bowl feeder to feed and orientate Pistons

Vibratory bowl feeder to feed and orientate Pistons

Vibratory bowl feeding and handling system to feed and orientate Pistons

RNA skills:-

  • Machine building and integration
  • Machine and process control
  • Bowl feeding
  • Project management
  • Developed with GAMP Pharmaceutical standards




Piston – 2 types


280 components per minute total (140ppm per bowl).

Bowl Type:

Stainless steel conical bowl

The system consists of:

Bulk Feeder (2-off)

  • BVL 25 vibratory hopper complete with outlet chute and beadblast finish

Vibratory Bowl Feeder

  • KSB-BA 400-15RG-220 – 304 Stainless steel conical bowl
  • FDA400: FDA approved polyurethane coating to suit component
  • SRC-N 400-1 Bowl feeder drive unit- Stainless Steel Cover
  • ESR 3000 Controller – Dual Frequency 50/60HZ, Output current 6Amp, CSA/CE approved control unit for the operation of a vibratory bowl feeder or linear feeder with inputs for two sensors to monitor and control the material flow

Linear Out-feed

  • SLL 804-2800 linear drive unit
  • Fitted with a twin lane tooled track approximately 2500 mm in length (lane 1) and approximately 3200 mm in length (lane 2)
  • Approximately 2000 mm overhang of linear track to customer machine
  • Fitted with high and low level sensors

Change over between components will be accommodated via interchangeable/adjustable tooling.


Component contacts: Stainless grade 304, hard anodised aluminium, and FDA approved polyurethane.
Non-contacts: Stainless grade 304, anodised / painted aluminium and painted mild steel.


How RNA Bowl Feeder Feeds and Orientates Pistons

# Life Science
# Vibratory Bowl Feeder

Vibratory bowl feeder to feed and orientate Pistons
