Industry:
Product:
Caps
Orientation:
Component parts to be discharged single file, axis vertical, radius to radius, hanging from head.
Speed:
50 components per minute
Key features:
● Stepped bowl
● FDA approved polyurethane coating
● Smooth and gentle handling
Solution
The bowl feeder system is designed to automatically sort and feed caps onto a rotary table. The system comprises a cap bowl feeder, a linear Out-feed and a pneumatically operated escapement to separate and present the component parts for collection by pick & place.

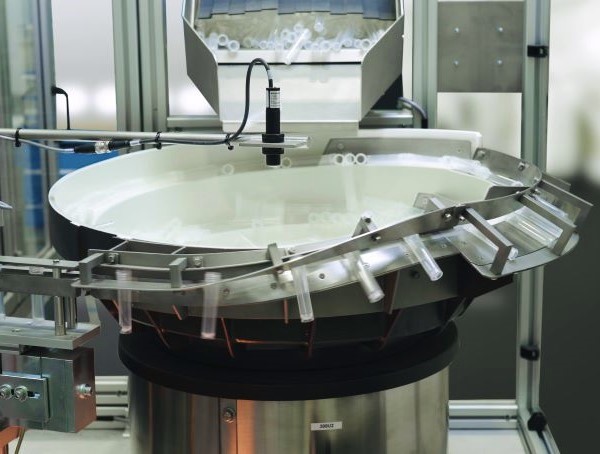

Vibratory Bowl Feeder
A vibratory sorting bowl is tooled to feed and orient component parts into 2 streams before transferring them to the linear out-feed; Internally lined with a white FDA approved polyurethane coating.
Linear Feeder
A Vibratory linear feeder is fitted with a twin lane tooled track approximately 600 mm in length, a high-level sensor to feed the streams of parts into the escapement.
Escapement
Pneumatically operated escapement to separate & present 2 parts for collection by pick & place.

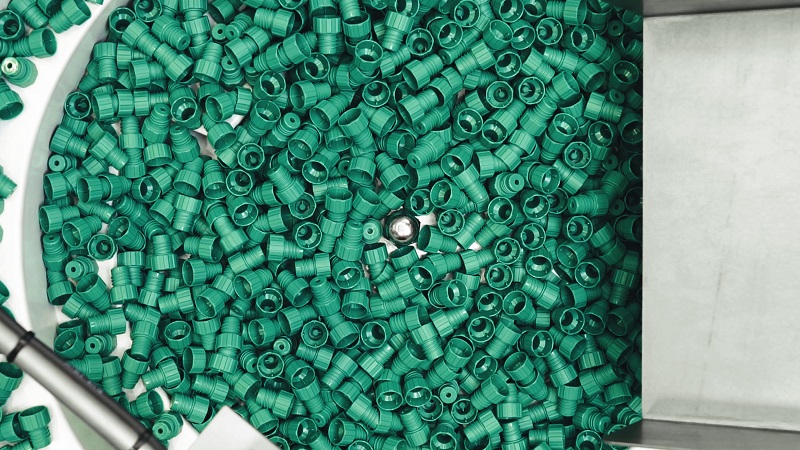

Cap Bowl Feeder
Linear Out-feed
Watch
How RNA vibratory parts feeder sorts and orientates Caps to a rotary indexing table
