Multi-lane bowl feeder handles and orientates Spray Nozzle Tip Caps

Multi-lane bowl feeder handles and orientates Spray Nozzle Tip Caps

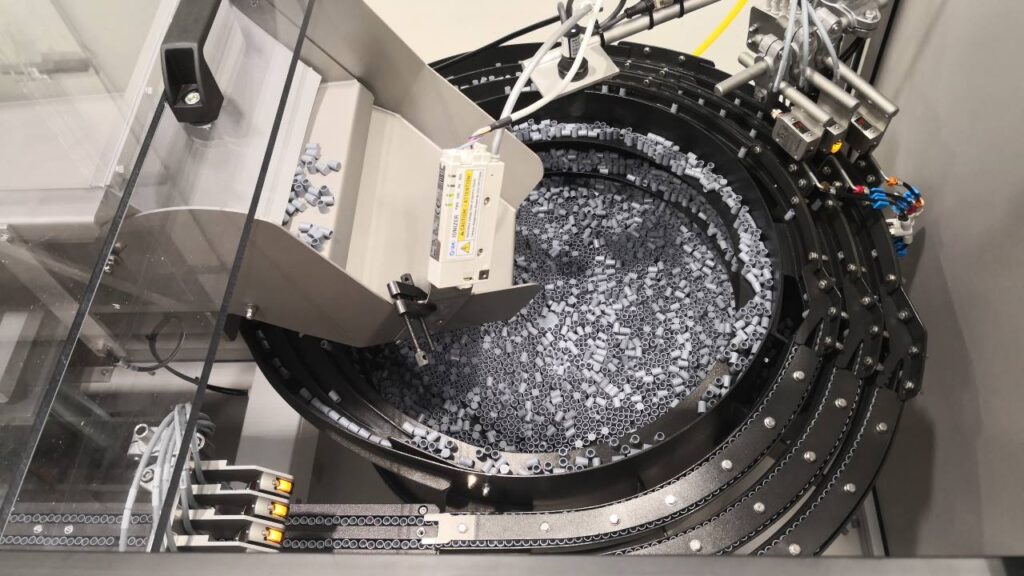

Multi-lane Vibratory bowl feeding and handling system to feed and orientate Spray Nozzle Tip Caps

RNA skills:-

  • Machine building and integration
  • Machine and process control
  • Bowl feeding
  • Project management

Multi-lane-vibratory-bowl-feeder-coated-with-a-smooth-Teflon

Product:

Spray Nozzle Tip Caps
Ø7.7 mm x 10.0 mm long

Performance:

40 components per minute per stream (240 components per minute total)

Bowl Type:

Cylindrical bowl

The system consists of:

  • BVL 15 vibratory hopper; Volume: 15ltr, Max weight: 15kg
  • ZSB-BA 400-30-175 316 Stainless steel cylindrical radial fixing bowl Capacity: 7Ltrs
  • SRC-N 400-1 Bowl feeder drive unit
  • ESR 3000 Controllers
  • SLL 400-600 linear drive unit Fitted with a tooled track approximately 800 mm in length
  • EGF track high level sensor with stand inc cable plug to suit ESK/ESR controller

Finishes:

Component contacts: Stainless grade 316L, smooth Teflon, and hard anodised aluminium.
Non-contacts: Stainless grade 304, anodised / painted aluminium and painted mild steel.
