Product:
Medical Plug
Ø6.75 mm x 6.0 mm long
Performance:
72 components per minute
Bowl Type:

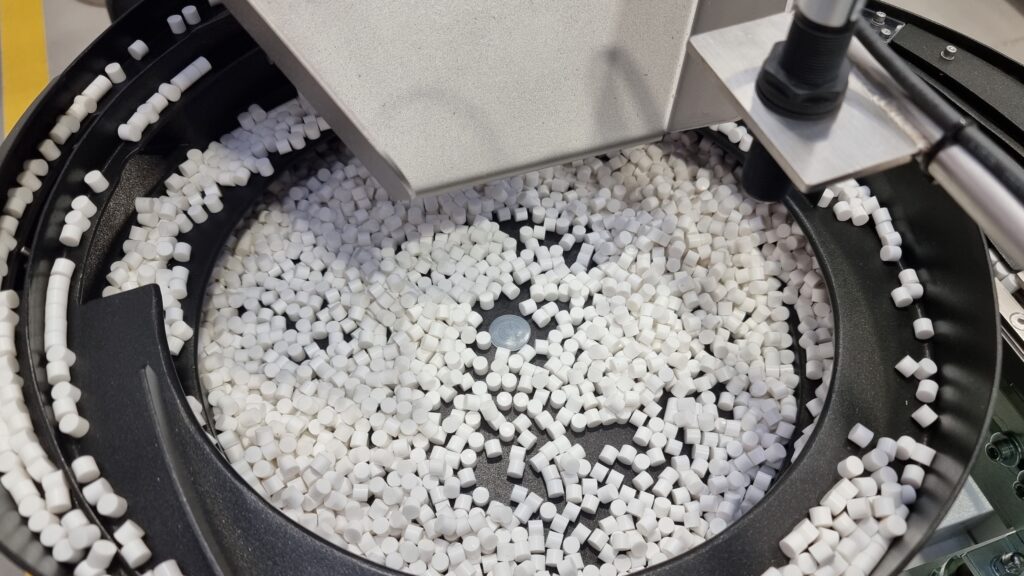

Cylindrical bowl

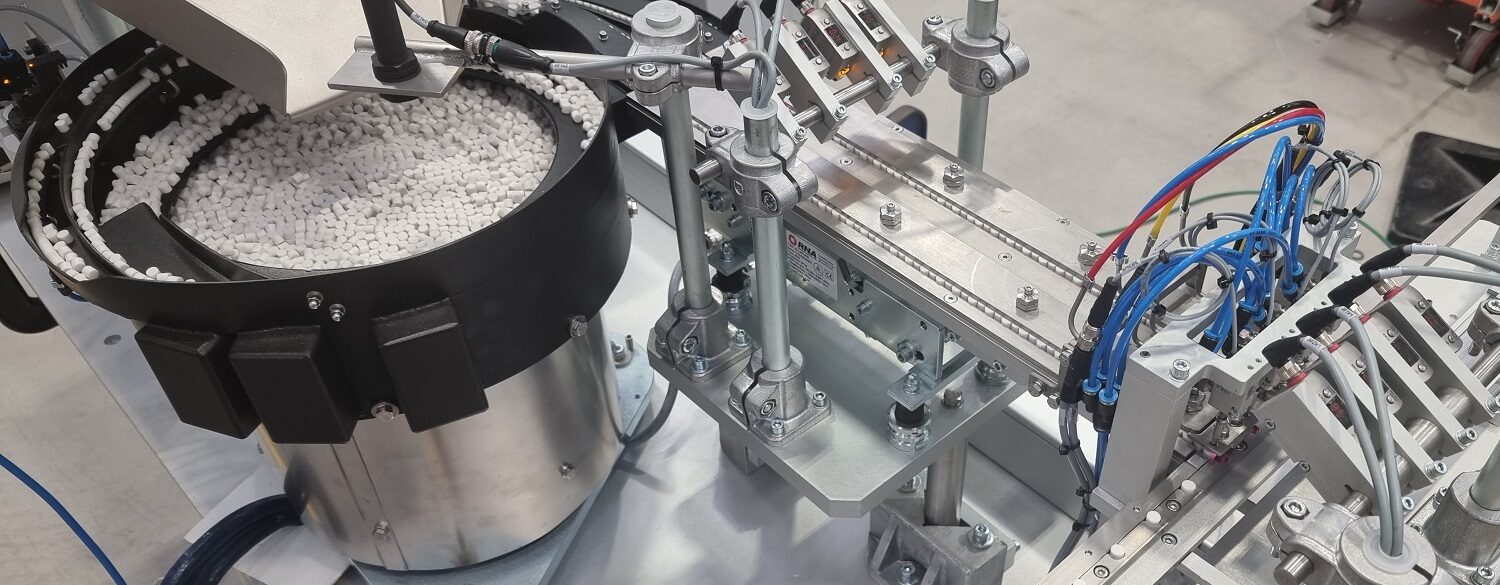

The system consists of:
- BVL 25 Hopper with linear feeder type SLL400-800, hopper tank 316 stainless steel, shotblast finish
- ZSB-BA 250(350)-20-125 – 316 Stainless steel cylindrical radial fixing bowl
- Teflon coating to suit component
- SRC-N 250-2 Bowl feeder drive unit
- ESK 2002 Controller 10A – Control unit for the operation of a vibratory bowl feeder, linear feeder, with vibrating or belt hopper
- SLL 400-400 linear drive unit; Fitted with a four lane tooled track approximately 500 mm in length
- EGF High level sensor, inc cable & plug
- Electric Slide Side Shuttle Escapement, complete with sensors and controller, to collect and present 12 components at a time for customer collection
Finishes:
Component contacts: Stainless grade 316, Teflon, and FDA approved polyurethane.
Non-contacts: Stainless grade 304, anodised / painted aluminium and painted mild steel.
