Industry:
Product:
Small metal precision caps
Orientation:
Components to be discharged single file radius to radius major diameter uppermost.
Speed:
60 parts per minute.
Key features:
● Cylindrical bowl
● Smooth and gentle handling
● Polyurethane spray coating to suit component
Solution
The vibratory bowl feed system is designed to automatically sort and feed small metal precision caps. The feed system comprises a bowl feeder, a linear out-feed, and at the end of the system, side shuttle escapement to separate and present one component at a time in two alternate positions for collection by customer’s handling unit.
Bowl Feeder

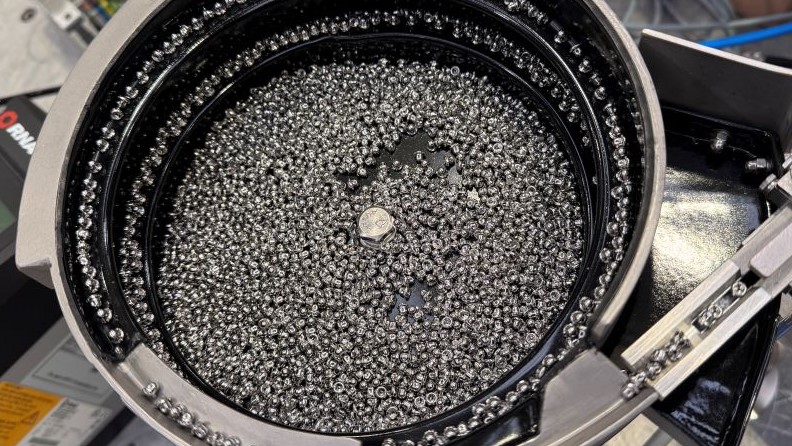

A vibratory bowl feeder is tooled to sort and feed the component parts before transferring them to the linear out-feeds. Internally lined with a polyurethane coating.
Linear Feeder
Fitted with a tooled track, the linear uses vibration to feed the stream of parts into the escapement.
Escapements and Nests
The pneumatically operated side shuttle escapement separates and presents one component at a time in two alternate positions for collection by customer's handling unit.
Vibratory Bowl Feeder
Linear Out-feed
Watch
How RNA vibratory feeding systems sort and orientate small metal precision caps
