Bowl Feeder Handles Caps

Bowl Feeder Handles Caps

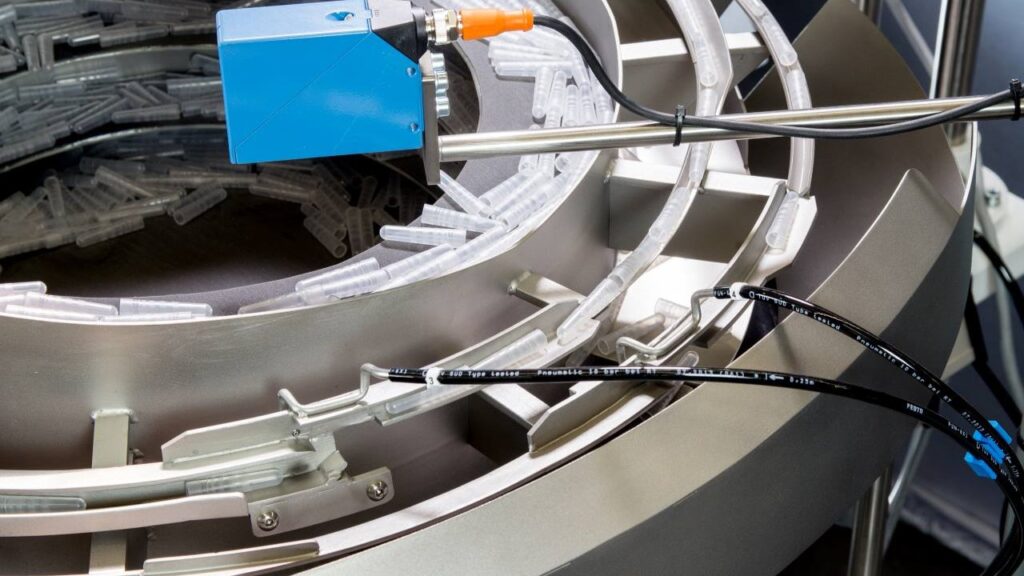

Bowl feeder for cap; Vibratory bowl feeding and handling system to feed and orientate cap (CSA/UL Approved)

RNA skills:-

  • Machine building and integration
  • Machine and process control
  • Bowl feeding
  • Project management
  • Developed with GAMP Pharmaceutical standards




Caps (Medical Device)


60 pcs/min

Bowl Type:

Cylindrical Bowl

The system consists of:

  • ZSB 400 bowl top
  • SRC-N 400 Bowl feeder drive unit
  • BUW Hooper
  • Controller
  • Gravity track
  • Electric slide side shuttle escapement

Sorting in the vibratory bowl feeder (rotary feeder) with a dual-track outlet. After sorting, there is a 90° turning of both tracks, in order to transfer the parts onto a ready carrier plate (8-fold).

The carrier plate is then turned by 180°, so that the required take-off position at the customer’s interface can be put into effect.


How RNA Bowl Feeder Feeds and Orientates Medical Caps

# Life Science
# Vibratory Bowl Feeder
