Six Axis Robot Clipping & Welding System

A leading global supplier of automotive components approached RNA to design and develop an automatic system for the assembly and Poka-Yoke of console side panels (left hand & right hand).

RNA skills:-

  • Machine building and integration
  • machine and process control
  • Robot programming
  • Feeding and handling
  • Welding process
  • Project management


Six Axis Robot Clipping & Welding SystemFor this particular project the system were required to fit 15 clips per side panel and weld one reinforcement panel per hand per cycle. RNA have developed an automatic robotic assembly system for clipping and welding incorporating a clip insertion robot, a welding robot with ultrasonic welding head, a bowl feeder system and a control system.

The Challenge

In designing the system a number of challenges were highlighted:

  • The project was required to have a complete cycle time of less than 120 seconds including load and unload time.
  • Component parts with shape variation
  • The project needed to ensure precise positional accuracy for the clip placement and the reinforcement panel welding.


Two work as a team

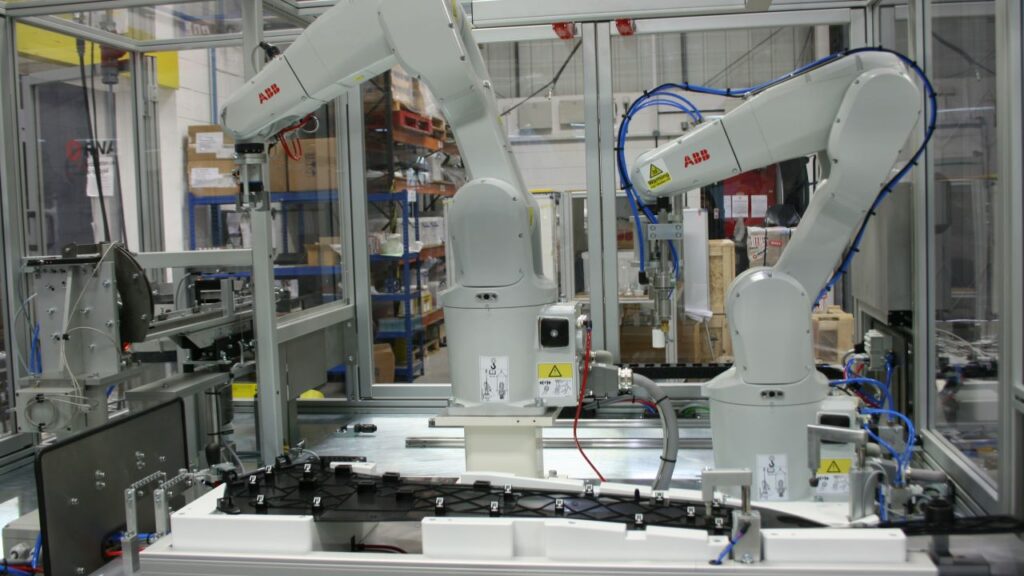

Working in close cooperation with our customer, engineers at RNA selected two six axis robots to carry out all the requisite processes.

To start the process, the console side panel and the reinforcement panel are manually loaded and clamped onto a sliding table by the operator and pushed into position. Robot 1 picks and accurately loads 15  lips onto the side panel, while robot 2 ultrasonically welds and joins the reinforcement panel to the side panel. The cycle time was optimized by having both robots work simultaneously to complete the clip placement and ultrasonic welding. To complete the process, robot 1 dot marks the ‘good’ side panel, adding poka-yoke (error proofing) and assuring traceability.

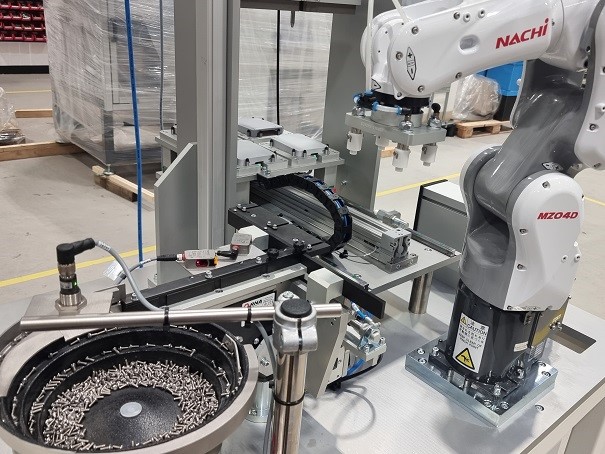

Upstream of the robots, clips are fed and orientated via a vibratory bowl and linear feed system to a precession shuttle mechanism so that the clip is always in a known repeatable and accurate positional location for the robot to pick up.

Once the robots have conducted their tasks the operator pulls the sliding table out and the cycle completes.

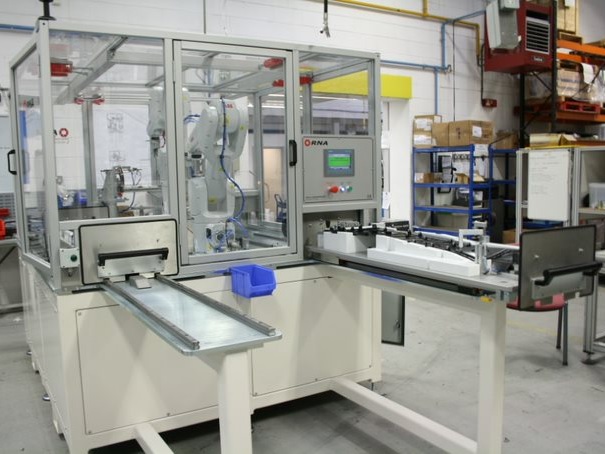

The system has independent right and left hand sliding tables, each including a mirrored assembly fixture for a LH or RH side panel. While the operator is unloading and reloading one side, the other side is being processed by the robots. The mirrored feature allows for increased productivity due to fast lead time and the inherent repeatability and efficiency of the robotic process.

A human-machine interface (HMI) is integrated, giving instructions to the operator and enabling easy configuration of parameters and monitoring of the whole operation.


How RNA Automatic Robotic Assembly System to Fit Automotive Clips and Weld Console Side Panel

# Automotive
# Robotic System
# Automotive Clip Bowl Feeder

Six Axis Robot Clipping & Welding System

Key benefits

  • Traceability Poka-Yoke (an error proofing mechanism used in a lean manufacturing process)
  • The quality of welding is significantly higher than with manual welding
  • Easy to operate and meets the requirements of safety
  • Provide speed, accuracy and repeatability
  • Increase productivity and consistency and reduce rework

All of these benefits deliver a short payback period and impressive return on investment.
