Solution
The vibratory bowl feed system is designed to automatically sort and feed Plastic Bases. The feed system comprises a hopper, a bowl feeder, a selection linear and a conveyor out-feed to transport the component parts to the next stage of the process.

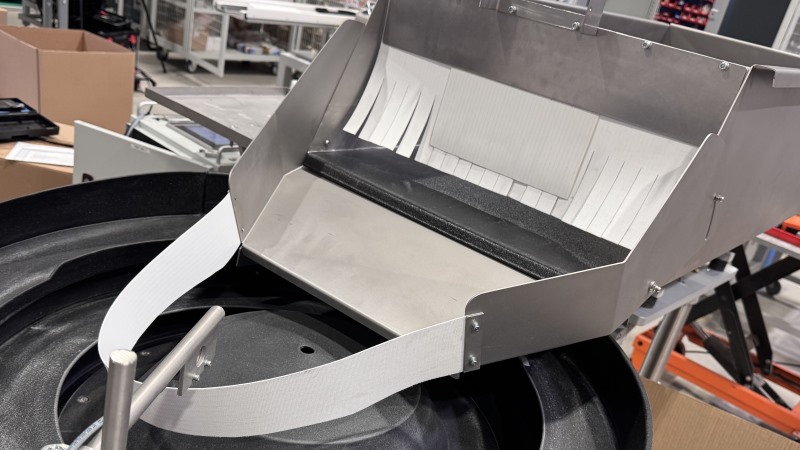

Bulk Storage Hopper
The hopper is used to store and transfer component parts into the vibratory bowl feeder, providing a storage capacity of 125L.

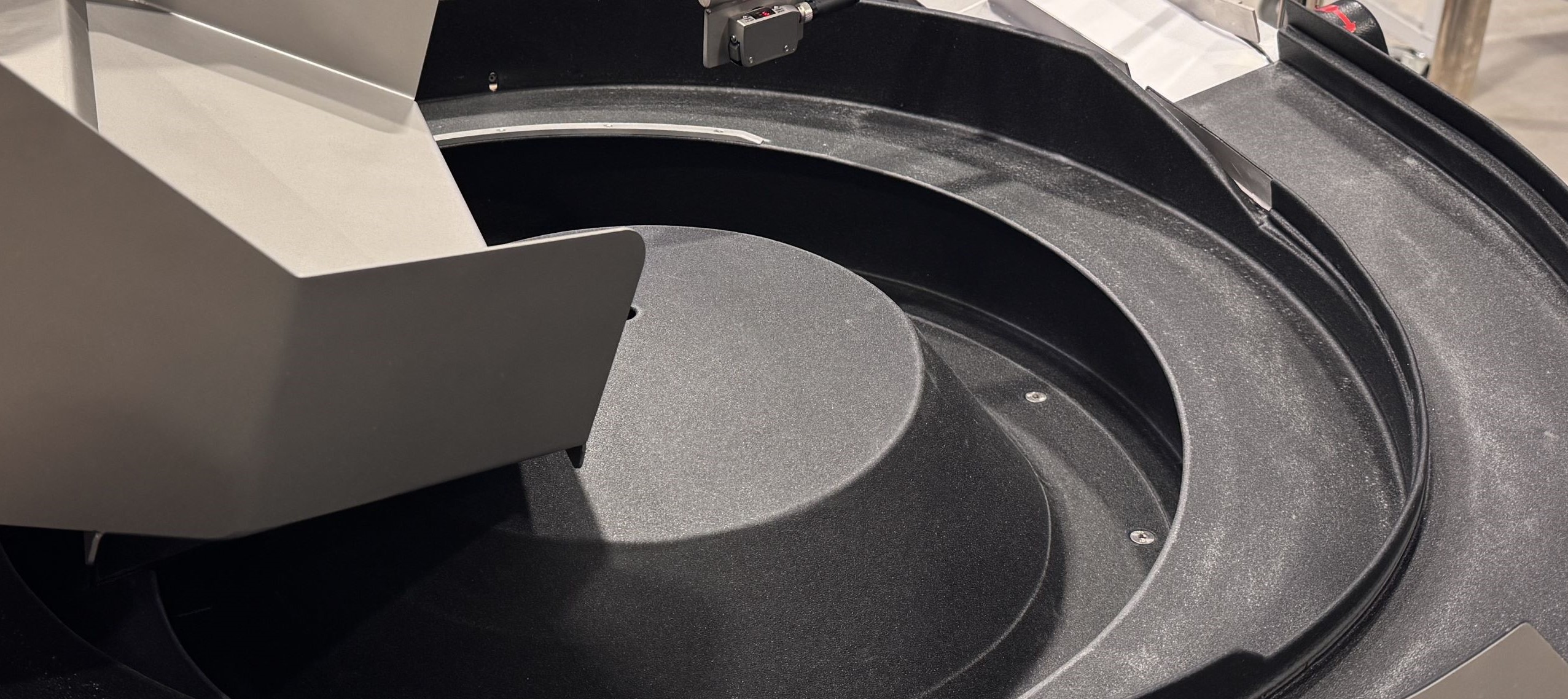

Bowl Feeder
A vibratory bowl feeder is tooled to sort and feed the component parts before transferring them to the selection linear with return tray. Then onto conveyor out-feed.
Linear selection
600mm of linear track to selection the component and return bad part to the bowl with a return tray.
Conveyor Out-feed
FP120 conveyor approximately 1400mm in length; Tick tock on conveyor to fixed end stop customer pick position.
Bulk Storage Hopper

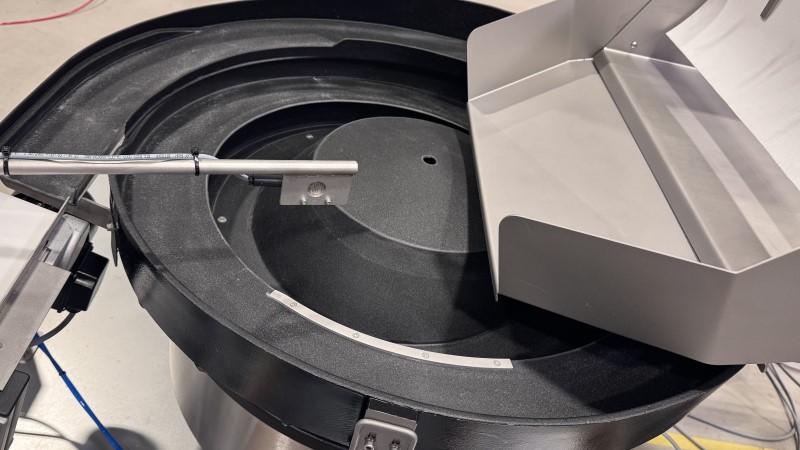

Vibratory Bowl Feeder
Selection Linear
