Vibratory feeders



Vibratory bowl feeders are the most common device used to feed components in Industrial Assembly Automation Applications. Vibratory feeders are self-contained systems, comprising of a specially tooled bowl feeder that orients the components, a vibrating drive unit m upon which the bowl feeder is mounted and a variable-amplitude control box.

 Vibratory bowl feeder nutsThe bowl feeder, including an out feed accumulation track to convey parts along and discharge into the assembly machine are supplied in many shapes and sizes. The drive unit, available in both electromagnetic and pneumatic drives, vibrates the bowl feeder, forcing the parts to move up a circular, inclined track. The track is designed to sort and orient the parts in consistent, repeatable positions. The track length, width, and depth are carefully chosen to suit the application and component shape and size. Special track coatings are applied according to shape size and material of the parts which aids traction, damage to the product and lower acoustic levels. A variable speed control box is used for controlling the vibration of the bowl feeder and stops the flow of parts to the out feed track via sensors.

Vibratory feeders are utilized n many industries including, pharmaceutical, automotive, electronic, food, Fast Moving Consumable Goods (FMCG), packaging and metal working industries. It also serves other industries such as glass, foundry, steel, construction, recycling, pulp and paper, and plastics.

Vibratory bowl feeder pharmaceuticals

Vibratory feeders offer a cost-effective alternative to manual labour, saving manufacturer’s time and labour costs. Several factors must be considered when selecting a parts feeder, including the industry, application, material properties, and product volume.

RNA engineer and manufacture the most reliable and highest quality vibratory feeders providing low maintenance and accurate handling solutions for a wide range of material parts processing applications.

Our experienced project managers will be responsible for the entire production process of your application. If you are looking for a high quality vibratory feeder or other special purpose handling system, please do not hesitate to contact us either by phone, email or simply using the enquiry form below.

ApplicationsVideosLeaflets and Catalogue
Bowl feeders handle Plastic Nuts Plastic nut bowl feeder Read more
>> Vibratory bowl feeding and handling system to feed and orientate Plastic Nut (CSA/UL Approved) Product information

Bowl feeders handle Terminals Plugs for syringes Read more
Vibratory bowl feeding and handling system to feed and orientate Positive/Negative Terminal (CSA/UL Approved)
Performance: 600 parts per minute

Product information
RNA Quick Release Feeder RNA Quick Release feeder Read more
>> The RNA developed unique Quick Release Feeder (QRF) provides a low cost option for machinery needing fast changeover between products, or where regular cleaning is necessary. Product information (PDF)

Plugs for Non-reusable Syringes Plugs for syringes Read more
Performance: 600 parts per minute Design: Fully pharmaceutical-conform version. The bowl is electrolytically polished. All outer elements are made from the material 1.4301 including the base plate and the welded pedestal. Product information (PDF)
Cable Fasteners Cable Fastener bowl feeder Read more
Sector: Electronics Industry Performance: > 30 parts per minute Product information (PDF)

NTA Nails Nails bowl feeder Read more
Description: Hanging by the head, one behind the other, without further sorting. The components are orientated and fed to an indexing table. Performance: 250 parts per minute Product information (PDF)

Rubber Stoppers Cable Fastener bowl feeder Read more
Sector: Pharmaceutical Industry Performance: up to 132 parts per minute Product information (PDF)

Razor blade handle Razor blade handle bowl feeder Read more
Description: Orientating the razor blades as a 2 component moulded part (plastic and rubber) to the customer machine. RNA’s technical expertise is shown in feeding the components due to its sticky nature. Performance: 65 parts per minute Product information (PDF)

See all success stories


Cap vibratory bowl feeder

Pharmaceutical Caps

 vibratory bowl feeder 2

Silicon Stoppers


vibratory bowl feeder 3

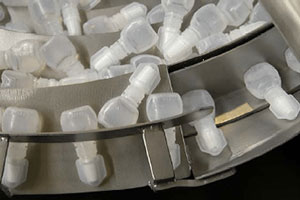

Xalatan bottles

 vibratory bowl feeder 4

Shaver Handler

More Videos
