Centrifugal Feeders to feed and handle Caps and Actuators

Project Overview

Feeding and orientation of plastic caps and actuators for a high-speed packaging line. The customer required a reliable solution to handle lightweight plastic caps and actuators at high speeds, while maintaining consistent orientation for downstream assembly and capping processes.

The Challenge

Due to the geometry and material characteristics of the components, key challenges included:

● Preventing part damage during handling
● Achieving stable orientation at high throughput
● Minimising noise and wear compared to traditional systems
● Ensuring continuous, jam-free operation

The Solution

RNA supplied centrifugal feeding and handling systems, specifically designed for high-speed applications involving plastic components.

Centrifugal Feeder for Caps

Product:

Cap 53mm x 38mm

Orientation:

Components to be discharged single file, flat on track, radius to radius openface upperrmost.

Speed:

180 components per minute.

Scope of Supply:

● Bulk Feeder & Elevator
● Centrifugal Feeder
● Out-feed Conveyor

Key features:

● Centrifugal Feeder CF-30
● Smooth and gentle handling
● Stainless grade 304, FDA approved ABS vacuum formed disc, Teflon hard anodised aluminium.

Bulk Feeder & Elevator

Centrifugal Feeder for Caps

Linear Outfeed

Centrifugal Feeder for Actuators

Product:

Actuator 39mm x 16mm

Orientation:

Components to be discharged single file, flat on track, radius to radius openface upperrmost.

Speed:

265 components per minute.

Scope of Supply:

● Bulk Feeder & Elevator
● Centrifugal Feeder
● Out-feed Conveyor

Key features:

● Centrifugal Feeder CF-30
● Smooth and gentle handling
● Stainless grade 304, FDA approved ABS vacuum formed disc, Teflon hard anodised aluminium.

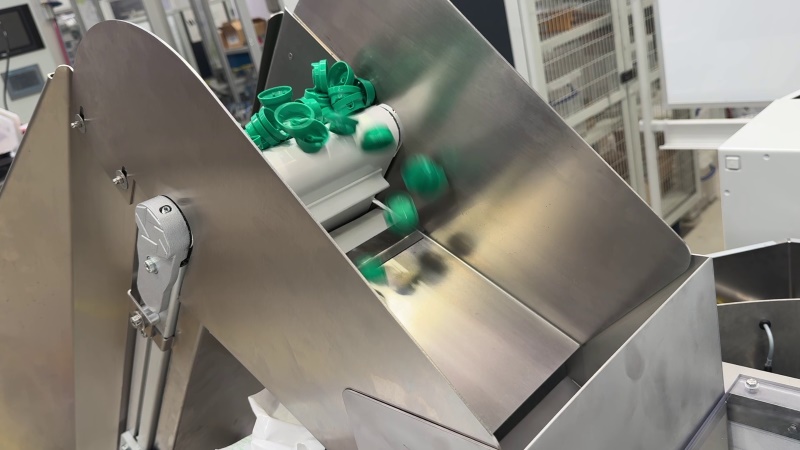

Bulk Feeder & Elevator (Actuators)

Centrifugal Feeder for Actuators

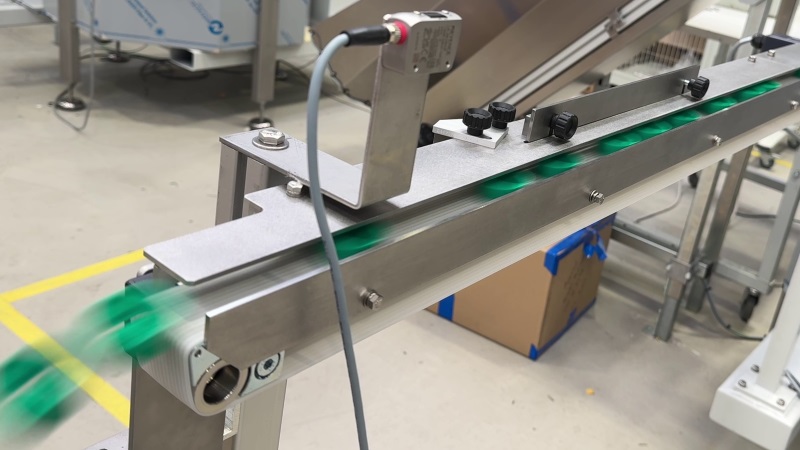

Linear Outfeed(Actuators)

The Results

The solution delivered:

• High-speed, continuous feeding performance
• Gentle handling of delicate plastic parts
• Consistent and repeatable part orientation
• Reduced noise levels and lower mechanical wear
• Improved overall efficiency of the production line

Centrifugal feeding technology provides a highly effective solution for applications involving caps and actuators, particularly where speed, consistency, and gentle handling are critical.

RNA Automation’s expertise in feeding and handling systems ensures each solution is optimised for both performance and reliability in demanding production environments.
