FlexType™ Clip
Semi-Automated & Fully Automated Robotic Clipping Machines for Automotive Component Assembly
Downloads
Suitable for
Clipping ApplicationUltrasonic Welding Application
What is the FlexType™ Clip?

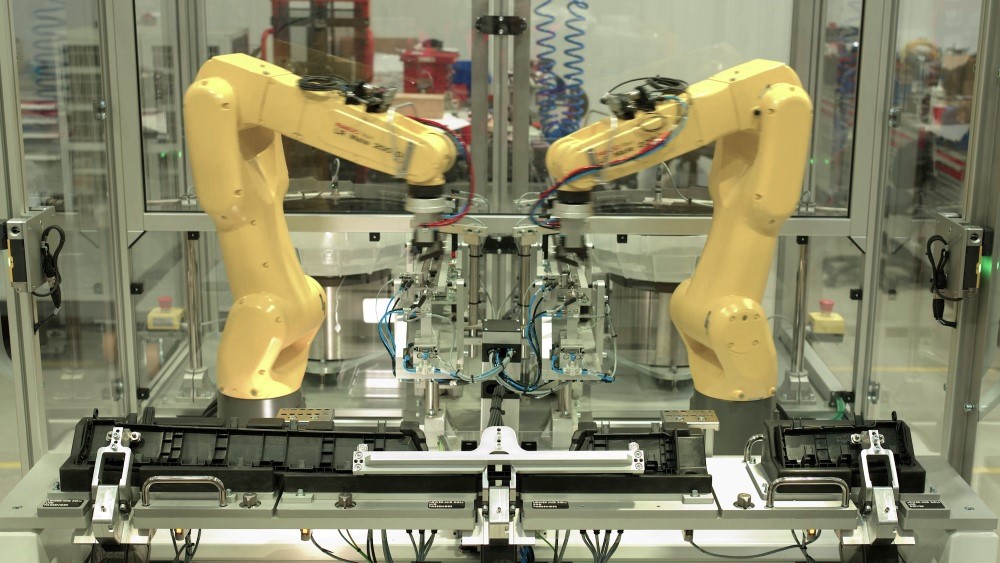

The FlexType™ Clip is a stand-alone robotic clipping machine designed for high-volume automotive assembly. Available in semi-automated and fully automated configurations, the system uses a 6-axis robot with custom End of Arm Tooling (EOAT) to pick clips from an escapement, insert them precisely into the component, and verify correct seating — all within a single automated cycle.
The poka-yoke design ensures that no clip is missed, incorrectly seated, or released without verification, giving manufacturers the confidence to run high-volume production with minimal operator involvement.
System Configurations
- Clipping Application A single or multi-robot cell dedicated to automated clip insertion. Each robot is served by its own clip bowl feeder, linear track, and walk-forward escapement, ensuring a continuous and reliable clip supply. Full poka-yoke mechanisms verify every clip before the cycle advances.
- Clipping & Ultrasonic Welding Application For components requiring both clip fitting and ultrasonic welding, the FlexType™ Clip can integrate both operations within the same cell — reducing footprint, handling, and overall cycle time.
Included in FlexType™ Clip
1. Clip Feeding System
1/8
Clip Feeding System
A vibratory bowl feeder, linear track, and escapement align and present clips at the robot pick-up point for reliable transfer into the assembly process.
Contact us
2. 6-Axis Robot with Custom EOAT
3. Integrated control system with HMI
4. Vision System (Optional)
5. Machine Guarding/Safety
6. Poka-yoke Design
7. Poka-yoke Design
8. Barcode Scanning & MES Integration (Optional)
1/8
Clip Feeding System
A vibratory bowl feeder, linear track, and escapement align and present clips at the robot pick-up point for reliable transfer into the assembly process.
Contact us
2/8

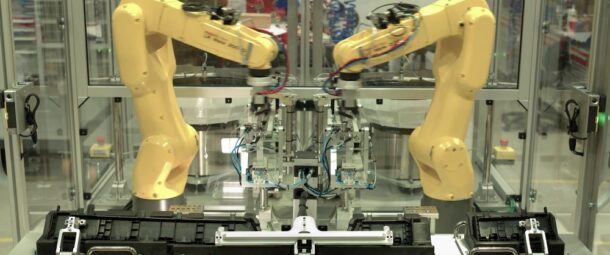

6-Axis Robot with Custom EOAT
A 6-axis industrial robot, selected for the appropriate payload and reach, is equipped with a bespoke gripper and End of Arm Tool.
Contact us
3/8
Integrated control system with HMI
User-friendly control software supports machine operation, teaching, configuration, and calibration through an intuitive HMI.
Contact us
4/8
Vision System (Optional)
Cameras and lighting can be integrated to detect part position, verify clip alignment, or inspect post-insertion results for additional quality assurance.
Contact us
5/8
Machine Guarding/Safety
The system includes machine guarding and safety measures such as interlocks or light guarding, with the robot, feeder, and associated equipment mounted within the machine structure.
Contact us
6/8
Poka-yoke Design
The machine uses sensors, vision systems, or custom fixtures to verify conditions—like part orientation, clip presence, or insertion force—before proceeding.
Contact us
7/8
Poka-yoke Design
Sensors, vision systems, and custom fixtures work together to verify part orientation, clip presence, and insertion conditions before the cycle advances — preventing defects before they occur.
Contact us
8/8
Barcode Scanning & MES Integration (Optional)
Fixed barcode scanners read component barcodes at the end of each cycle, confirming readability and transmitting part identification data to the factory MES system for complete production traceability.
Contact us
Key Benefits
Improved Quality & Consistency
Every clip is applied with exact positioning and verified at multiple stages — eliminating missed, misaligned, or incorrectly seated clips before the component is released.Increased production efficiency
Automated clip insertion significantly outpaces manual labor, boosting throughput and freeing operators for higher-value tasks.Flexible platform
The standard machine platform can be re-tooled and re-programmed for different products, and can also be adapted for more specialized applications.Compact design
The system is designed to make efficient use of factory floor space while integrating feeding, robotics, safety, and controls into one solution.Poka-yoke design (Error-proofing)
Built-in poka-yoke features help prevent assembly errors before they occur, supporting product quality and process reliability.Short Payback Period
The standardized FlexType™ Clip platform delivers a fast return on investment without compromizing on capability or quality.Full Traceability
MES integration provides a complete production record for every component, supporting quality audits and warranty management.Safe by Design
Physical partitions, interlocked guarding, and light curtains ensure operator safety throughout the production cycle, meeting current safety standards.What is a robotic clipping machine?
A robotic clipping machine is an automated system that use robotic technology to perform clipping or fastening tasks in industrial settings. These machines typically feature robotic arms equipped with specialized tools, such as grippers or clip applicators, to precisely attach clips, clamps, or fasteners to products. They are designed to streamline assembly processes, improve consistency, and reduce manual labor, making them valuable in high-volume production environments.
×
Machine Features
Downloads
- Machine Frame inclusive of base plate
- Machine Guarding/Safety
- Machine safety (light guards etc.)
- Robot gripper system (bespoke EOAT)
- 6-axis robot(s) depending on payload and reach
- Clip Feeding Equipment – Bowl, Linear & escapement
- Integrated control system with HMI
- Pneumatics – Air prep set/dump valve/valves
- Quick change facility on the machine for the component fixturing (option)
- Vision Inspection System (option)
