Industry:
Product:
Glass encased electrical components
Orientation:
Components discharged single file, random end to end.
Speed:
100 parts per minute.
Key features:
● Aluminium stepped bowl
● Polyurethane spray coating to suit component
● Stainless steel-covered drive unit
● Dual-voltage digital controller
Solution

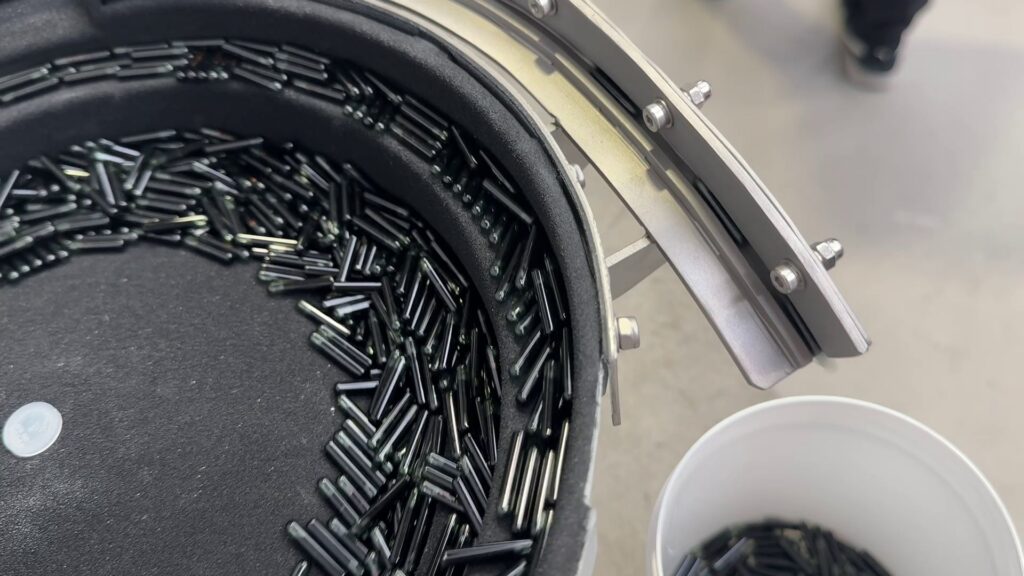

The vibratory bowl feed system is designed to sort and feed small glass encased electrical components. The bowl feeder discharges the components single file, in random end-to-end orientation, at a rate of 100 components per minute.

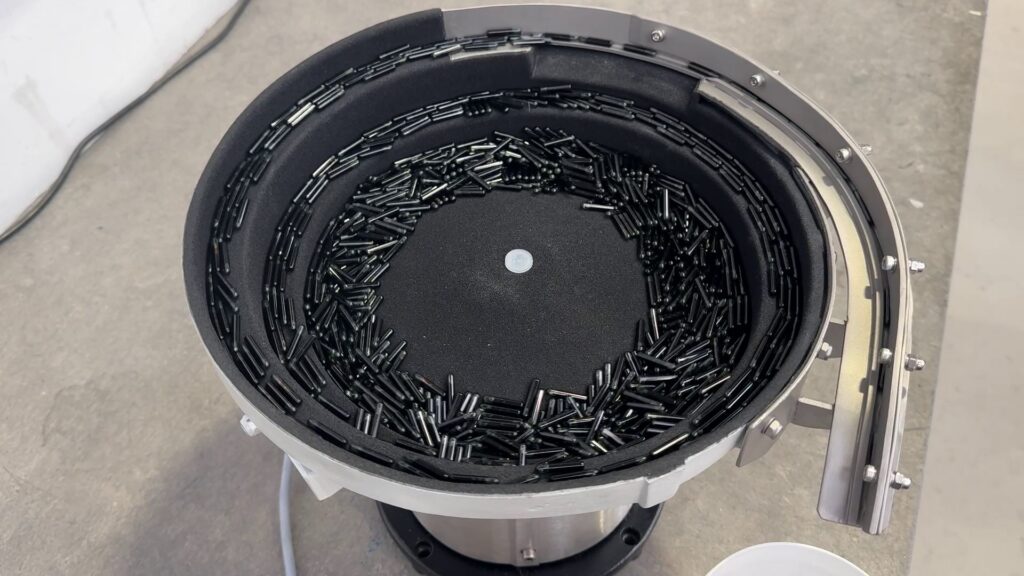

Bowl Feeder

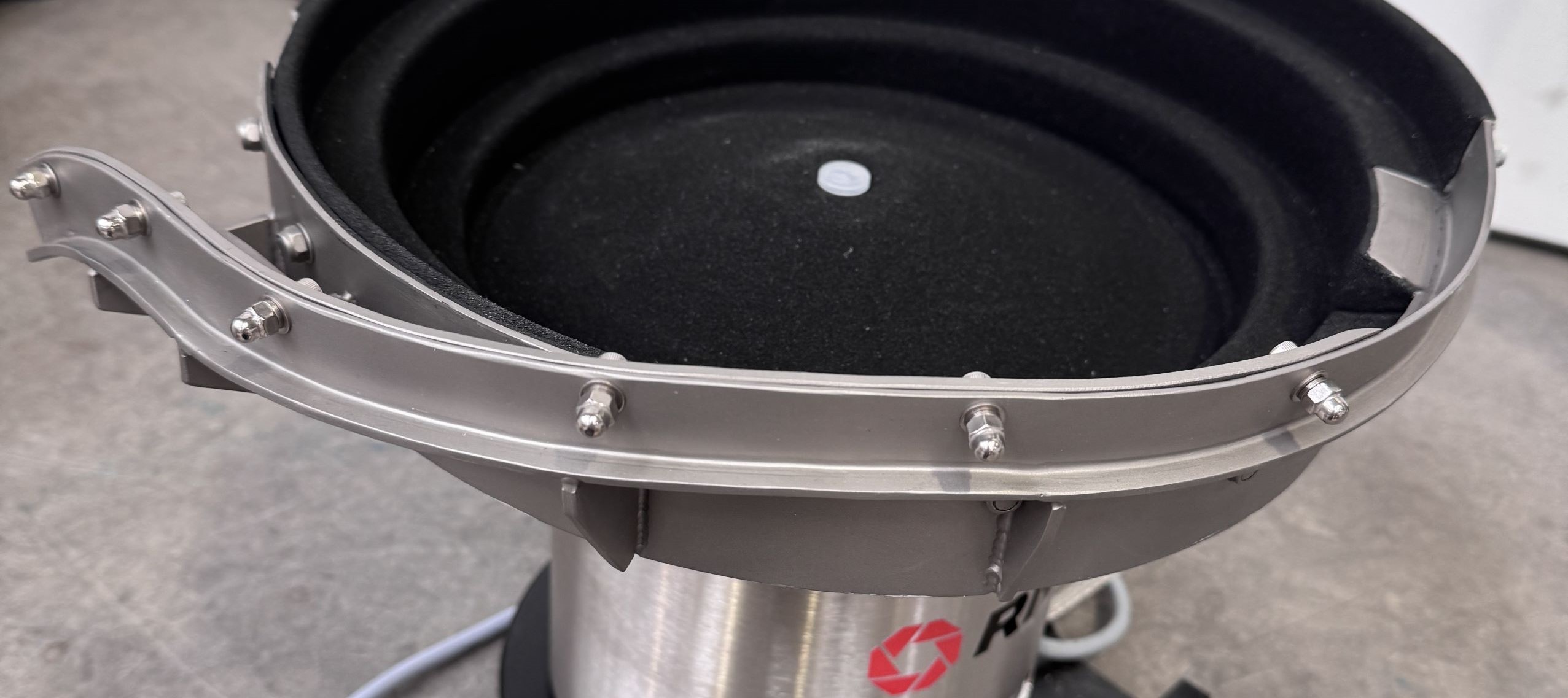

A vibratory bowl feeder, complete with control box, is tooled to sort and feed the component. The equipment specified is a TAG-Z 200(324)-20-105 aluminium stepped, central-fixing bowl, with a capacity of 1 litre.
Drive Unit
An SRC-N 200-2 bowl feeder drive unit, fitted with a stainless steel cover, provides the vibratory motion.
Control Box
An ESK2001 controller — a dual-voltage 50/60Hz unit approved to CSA/UL/CE — regulates the feed rate.
Watch
How RNA vibratory feeding systems sort and orientate glass encased electrical components
