Industry:
Product:
Handles
Orientation:
Components discharged axis vertical, hanging from flange, flat in line of motion.
Speed:
100 parts per minute.
Key features:
● Aluminium stepped bowl
● Smooth and gentle handling
● FDA approved polyurethane coating to suit component
Solution

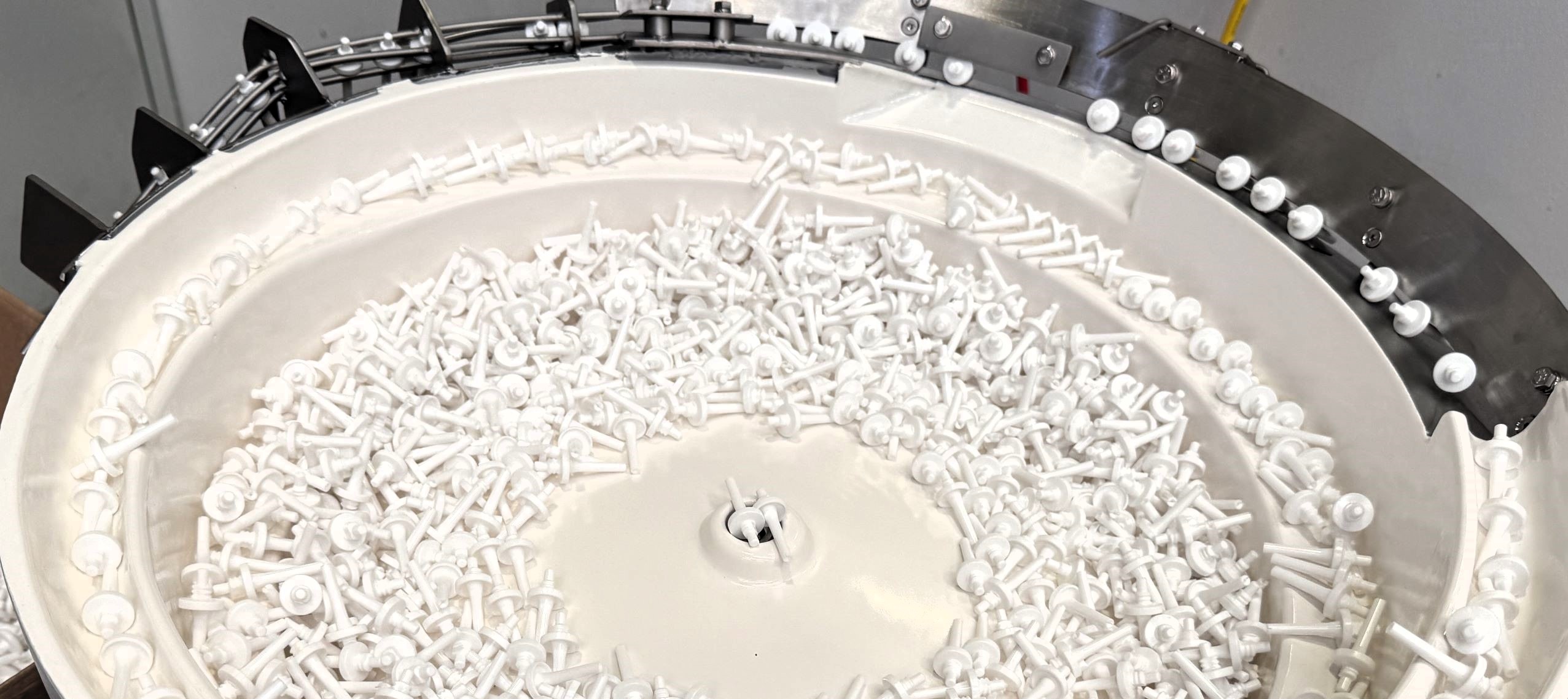

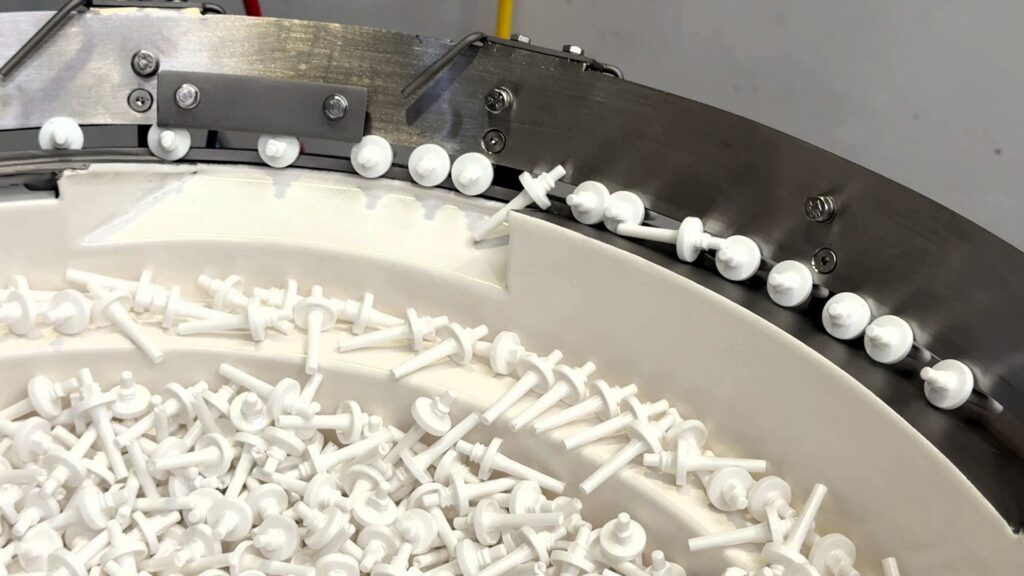

The vibratory bowl feed system is designed to automatically sort and feed handles. The bowl feeder is tooled to feed and orientate the component — discharging it axis vertical, hanging from the flange, flat in line of motion — before transferring it to the customer’s own gravity out-feed, at a rate of 100 components per minute.
Bowl Feeder

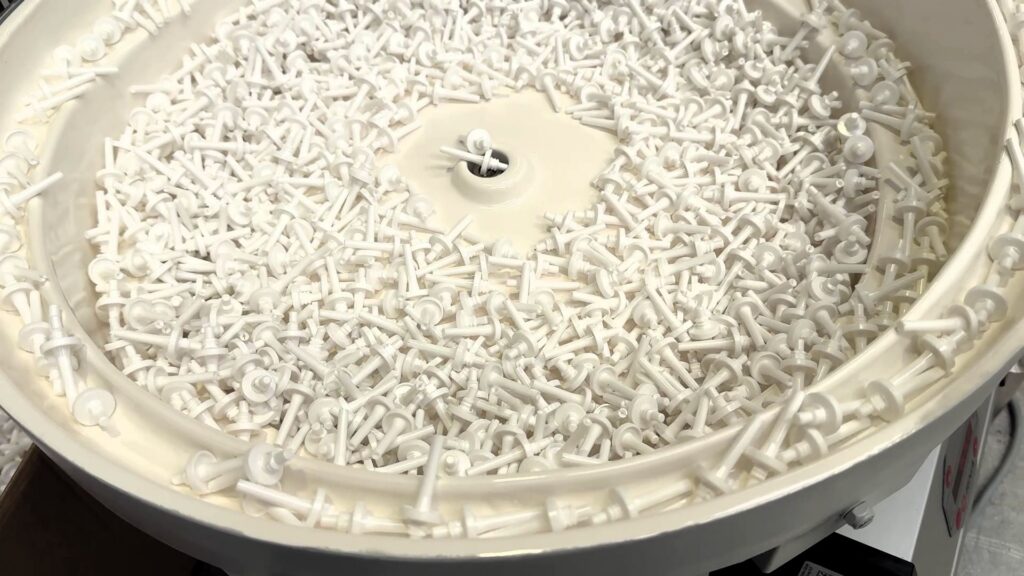

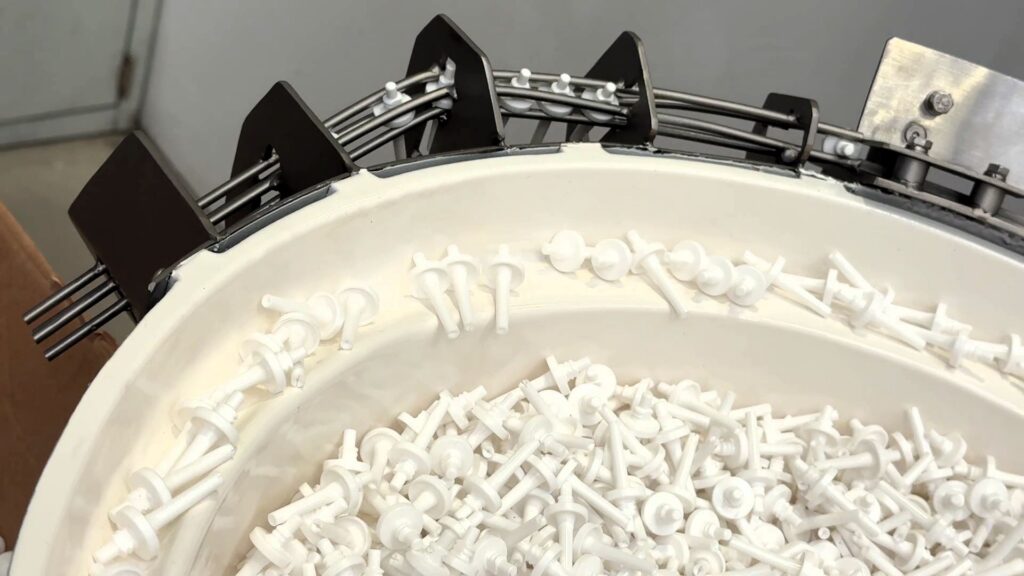

A vibratory bowl feeder is tooled to sort and feed the component parts before transferring them to the linear out-feeds. The equipment specified is a TAG-2A 250 (541)-32-165 aluminium stepped, central-fixing bowl with a 7-litre capacity. The bowl is internally lined with an FDA250 FDA-approved polyurethane coating suited to the component.
Drive Unit
An SRC-N 250-2 bowl feeder drive unit provides the vibratory motion, one of the standard EcoType™ SRC-N drive units (200/250/400) matched to the corresponding bowl size.
Control Box
An ESK 2000 controller — a single-channel digital interface variable speed controller with built-in sensor inputs — regulates feed rate.
Watch
How RNA vibratory feeding systems sort and orientate handles
