Industry:
Product:
Clips
Orientation:
Components discharged axis vertical, barbed head uppermost, base inline.
Speed:
60 parts per minute.
Key features:
● Aluminium stepped bowl
● Smooth and gentle handling
● Black anodised bowl top
Solution

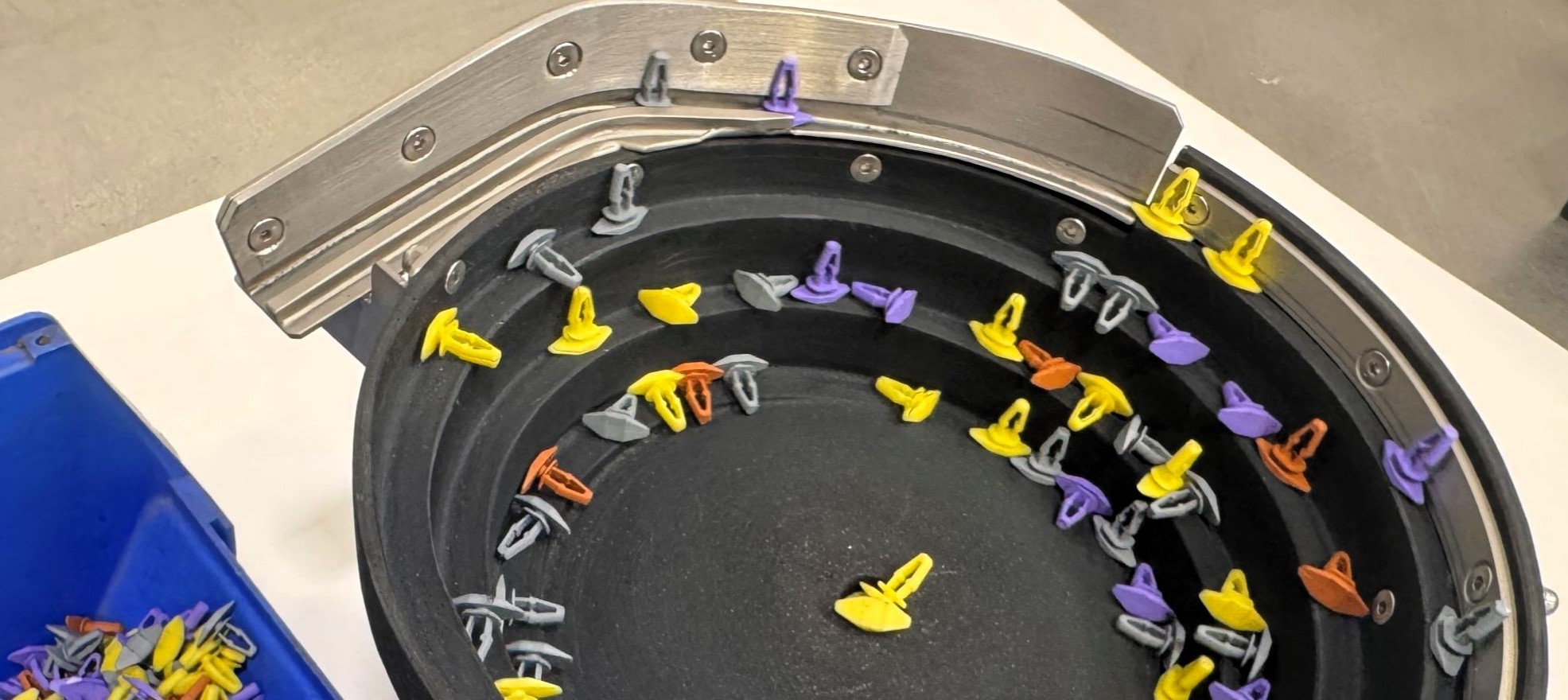

The vibratory bowl feed system is designed to automatically sort and feed clips. The bowl feeder discharges the components vertically, barbed head uppermost and base inline, with edges permitted to overlap, at a rate of 60 components per minute.
Bowl Feeder

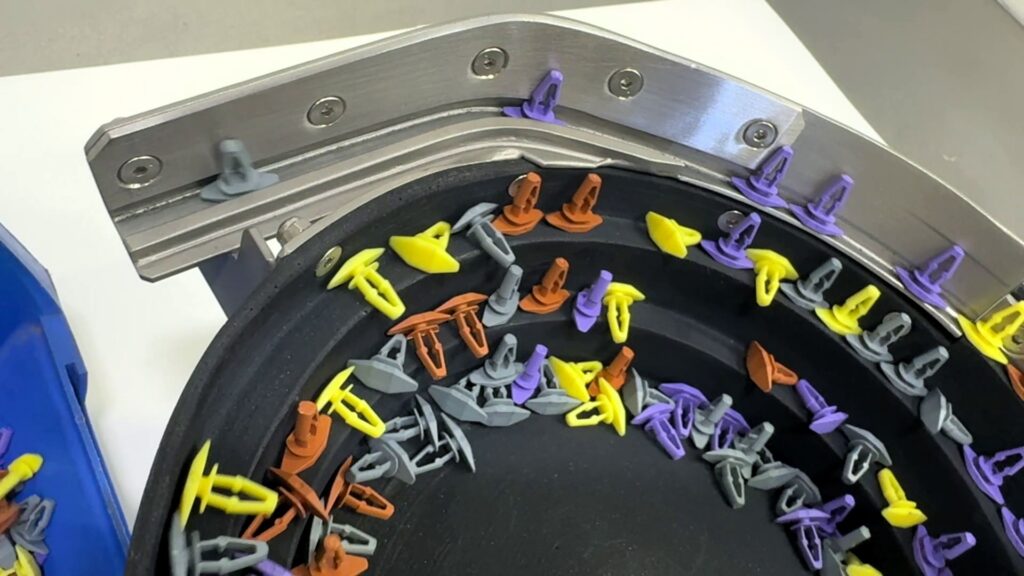

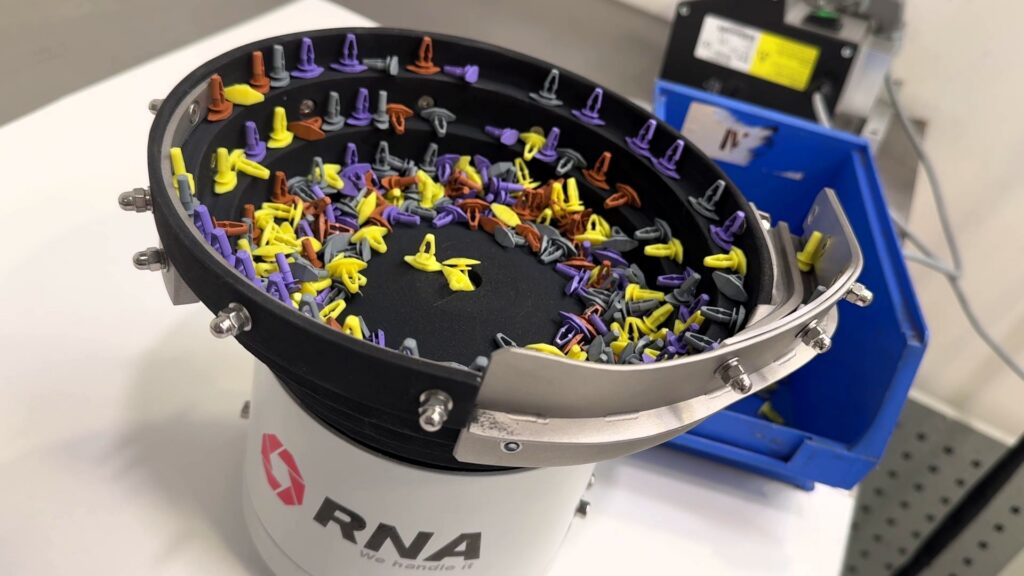

A vibratory bowl feeder is tooled to orientate the clip component as described above. The equipment specified is a TAG-Z 200-10-80 stepped cast aluminium bowl with central fixing, feeding anti-clockwise. The bowl top is finished black anodised.
Drive Unit
An SRC-N 160-2 drive unit, anti-clockwise, 200V 60Hz, CSA/UL approved, with a mild steel cover, provides the vibratory motion.
About EcoType™ Bowl Feeders
The EcoType™ series is RNA's standardised range of vibratory bowl feeders for simple, free-flowing component parts without separation, with feed rates of up to 200 parts per minute. Built on vibratory feeder sizes 200–400, EcoType™ bowls are aluminium with a polyurethane internal lining, offering short throughput times and favourable prices due to the simplicity of the part geometry and access to a large database of existing feeding solutions.
Watch
How RNA vibratory feeding systems sort and orientate clips
