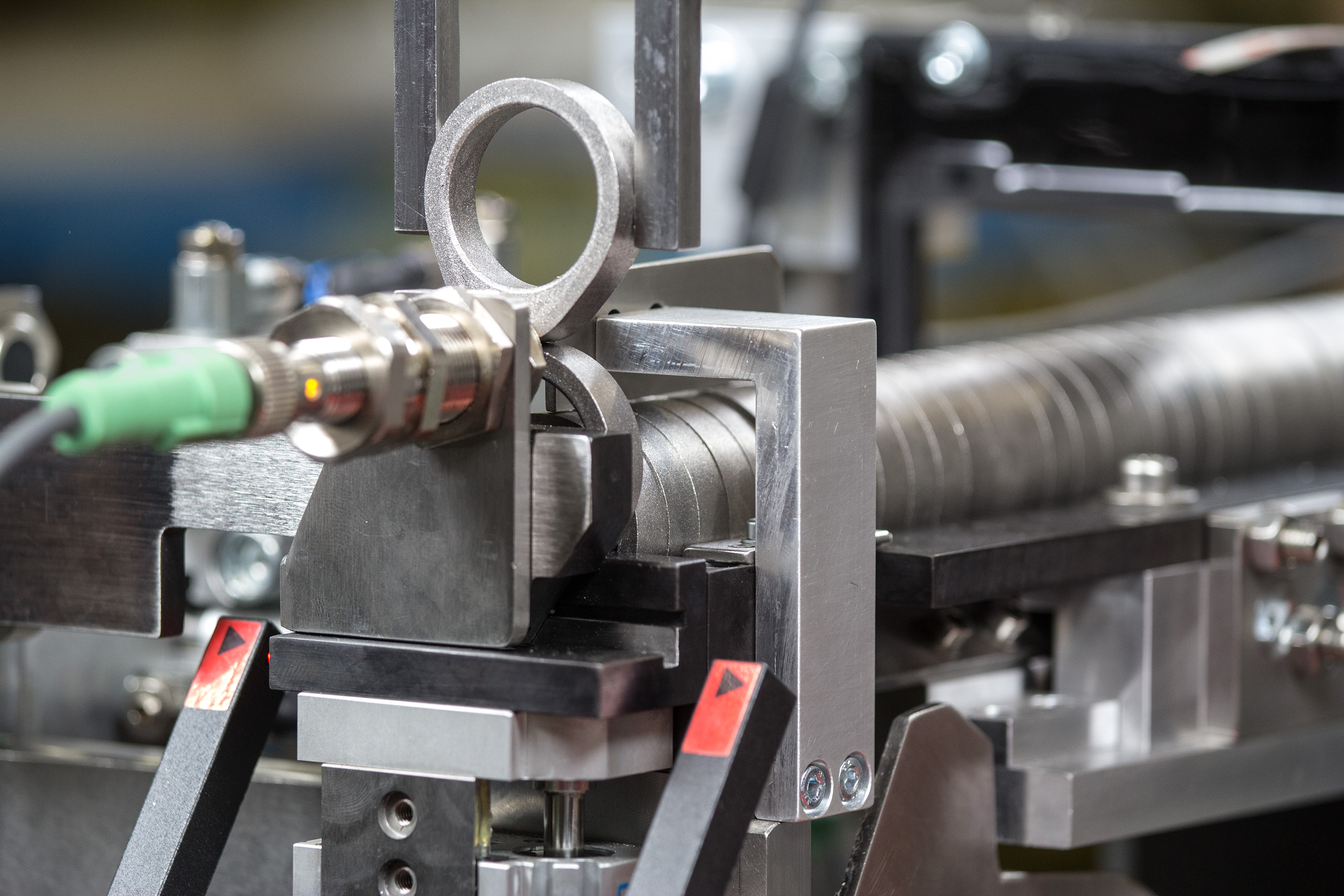

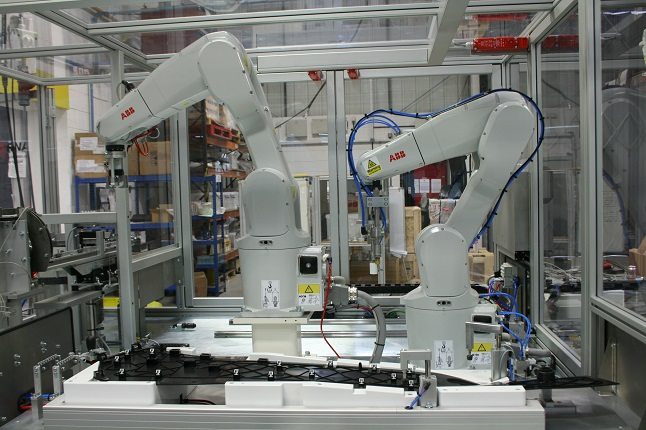

Automotive RNA provide automation solutions throughout the automotive industry to meet the high levels of productivity and quality standards demanded by the industry. The technologies used within our automation solutions:- Robotic Systems Assembly Systems Vision Inspection Systems Pick & Place Rotary Indexing Tables Handling and Feeding Technologies
ApplicationsVideos
Carpet Gap Hider carpet gap hider workstation Read more
Project: RNA Carpet Gap Hider Poka Yoke Station Operation Description: The workstation was dedicated to apply the correct label to correct product (two types). The task required a high concentration from the worker, and was the cause of many errors, since two types of products are too similar to each other, both in size and in colour. Full Case study
Tyre Pressure Sensor RNA-CaseStudy-Robotic Insert Loading and Test System Read more
Project: Robotic Loading and Test System Description: Our customer challenged RNA to design and manufacture a fully automated robotic loading system with minimal operator intervention for the manufacture, test and packaging of a tyre pressure sensor. Full Case Study
Weld-nuts Weld-nuts Read more
Project: Sorting and Feeding of 1 Type of Flange or 2 Types of Weld-Nuts M6 / M8 Operation Description: The flange and weld nuts are sorted in a bowl feeder and subsequently accumulated on a linear feeder with correct positioning. At the end of the linear feeder each of a flange- weld-nut is transversely shifted off. From this position the nut will be taken on by a handling system. The handling drives the weldnut to the welding position. Feeding Rate: ca. 12 parts per minute per run.
Aluminum Casings Aluminum Casings carpet feeder1 Read more

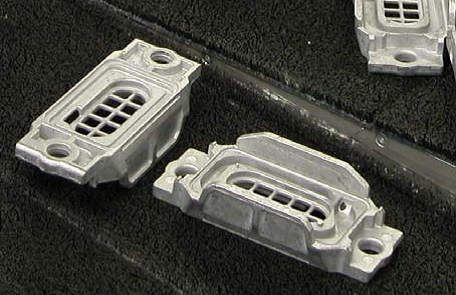

Project: Sorting and Feeding of 5 types of Aluminum Casings for rubber-metal motor mountings Operation Description: From a customer loader the aluminum casings reach the bulk hopper. A hopper passes the workpieces onto a flat feeder. On the flat feeder the aluminum casings are sorted turned lengthwise with the open ‘U’turned downwards and passed to an accumulation conveyor. At the end of the accumulation conveyor the workpieces are separated. An control station recognizes the orientation of the filling bore on the long side of the workpiece. A handling grabs the aluminum casing and transports it upwards over the conveyor of the vulcanizing machine. When a pocket of the cycle conveyor is underneath the handling position the aluminum casing is laid onto this receiver. Feeding Rate: Cycle time: 8 seconds.
Valve Seats Valve Seats Read more
Project: Sorting and Feeding of Valve Seats for ABS/ESP brake pressure regulators Operation Description: The workpieces are filled into a bulk hopper and dosed into a bowl feeder. The valve seats are sorted in the bowl feeder and passed to a linear feeder as accumulation track. At the end of the accumulation track each valve seat is individually passed to a rotating distributor. A mandrel is passed into the valve seat at a station and calibrates it. The calibration process is tested with a force measurement instrument. At a later station of the rotating distributor a hander of the assembly machine extracts the valve seats. Feeding Rate: 8 parts per minute.
Corrugated Bellows Corrugated Bellows Read more

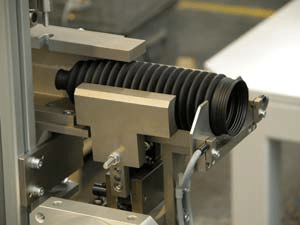

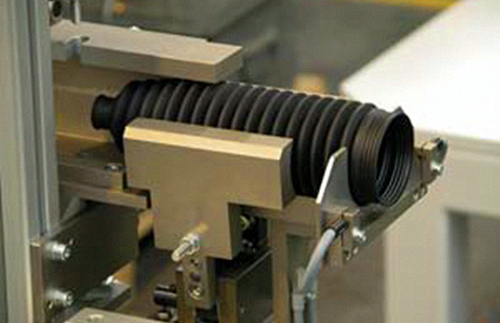

Project: Sorting and Feeding of Corrugated Bellows for VW-steering Operation Description: The pieces are loaded as bulk into a ca. 350 liter capacity bulk hopper; they are moved to the bowl of the bowl feeder in doses. Situated one behind the other in respect to the axis, they are passed-by a combination of sensors at the beginning of a linear track without further separation. Pieces with the large diameter oriented backwards are returned back to the bowl. At the end of the accumulation track the pieces are gripped and swung into a vertical position. Feeding Rate: 7 parts per minute.
Fuel Tank Fixings Fuel Tank Fixings Read more

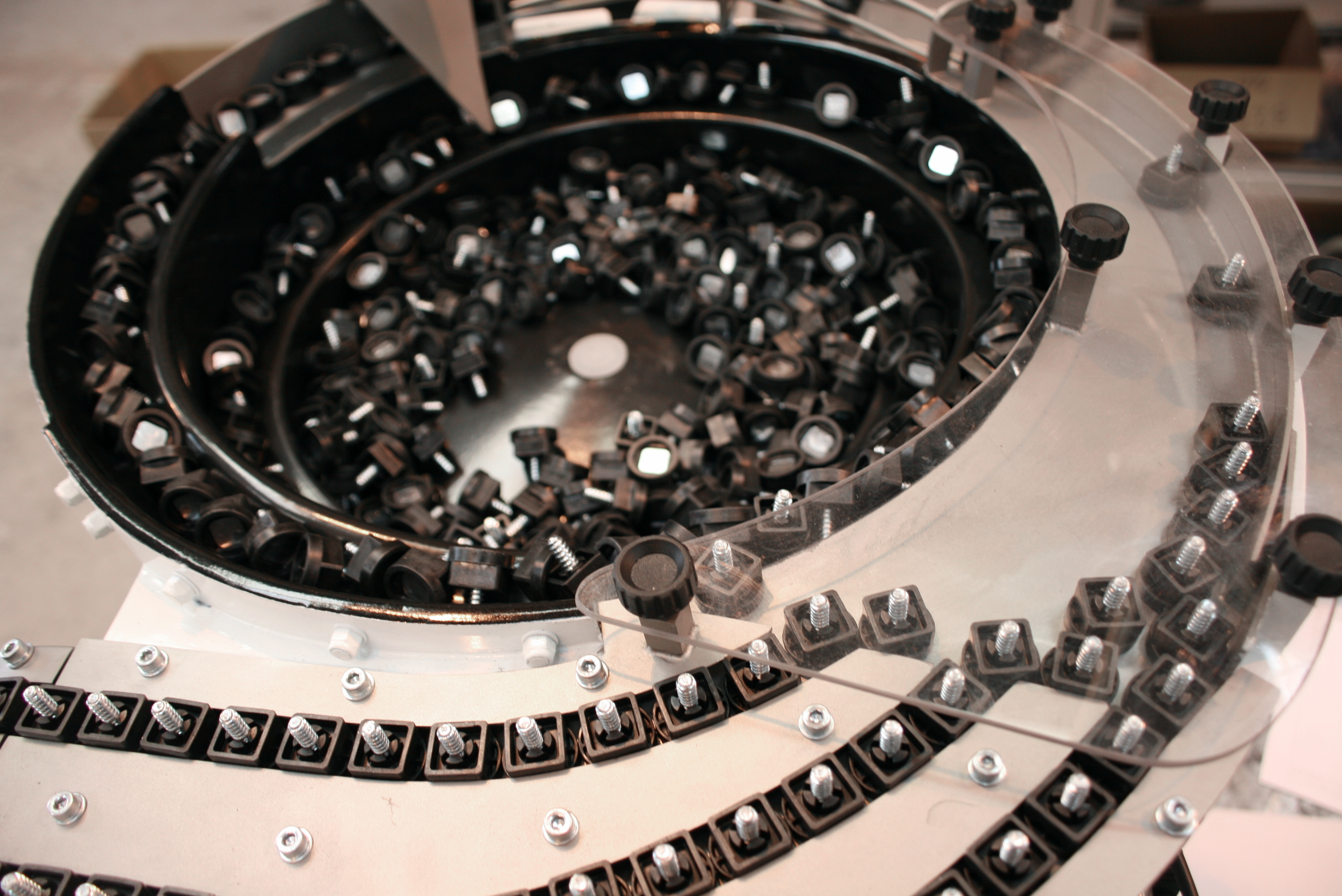

Project: Sorting and Feeding of Fuel Tank Fixings Operation Description: Components are loaded into the bowl feeder by a vibrating hopper on demand. The components are fed with the stem below and turned through 180 degrees via a twist track to stand them on the base. A flat tooling area is used to flood parts into four individual lanes (choke feed) and again turned through 180 degrees via “C” chutes to hang the components from the flanges inline all one wa. A special linear track that supports 4 lanes pitched to suit the customers pick and place systems feed the parts to dead nests. A hold back cylinder regulates the flow of components when a part is lifted from each nest. By designing the system this way each track can be used independently with no changeover or adjustment to suit the requirements of the customers cycle times. Performance: Major diameter uppermost, flats inline hanging. The equipment specified provides sufficient overfeed to ensure a consistent feed rate of 2 components per minute per outlet via 4 outlets staggered to suit the customer handling system
Carpet Feeder Aluminium Casings
Step Feeder Screws
