FlexType R – Robotic Handling Systems

Flexible handling systems with robotic technology by RNA

With the new flexible feeding systems of the FlexType R by RNA, you will get the best and most versatile solution on the market, especially for applications with frequently changing part geometries. They can be combined with all different kinds of robotic and control systems.

The FlexType R system have a big range of flexibility, in terms of part variability and part changeover.

FlexType R

Robo-flex B

FlexType R (‘Catamaran’)

ROBO-FLEX-C

FlexType P

Robo-flex P


FlexType R

ROBO-FLEX-B Robot Handling

The new linear flexible FlexType R feeding systems for all robot handling.

A linear pre-sorting conveyor to ensure a high volume of component parts to be picked up correctly by a robot.

The pre-sorter is built as a trough system. A drive moves the trough and sorting tracks fixed on it as one unit. Unsorted parts fall into the trough and are sent back to the parts circulation again.

After being sorted, the component parts are transferred to a camera belt for detection and then picked up by a robot. Parts that are not detected go back to the parts circulation which is kept at the same level with a level monitor and an additional hopper.

Thanks to the short changeover times, the system is particularly suitable for applications with changing part dimensions. A low-noise operation and the reproducible orienting elements with up to 20 tracks are further outstanding features.


Benefits
FlexType R:-

  • can be easily reconfigured to accommodate production changes.
  • can handle components of complex geometries with high performance and efficiency.
  • can be tailored for a range of component parts from the same family.
  • The lead-time required for production changeover can be reduced considerably.


FlexType R (‘Catamaran’)

ROBO-FLEX-C

The new linear flexible FlexType R (‘Catamaran’) feeding systems for all robot handling.

A linear pre-sorting conveyor to ensure a high volume of component parts to be picked up correctly by a robot. A ‘Catamaran’ construction.

This patented catamaran design carries the sorting tracks with two linear drives attached in parallel. Parts that fall off the sorting tracks are immediately caught up by a separate return belt running in opposite direction and then brought back to the parts circulation again. The catamaran allows for very flat and wide types of construction. What is unique about this is that it can be designed as a double system which enables two different components to be processes at the same time.



Benefits
FlexType R (‘Catamaran’):-

  • can be easily reconfigured to accommodate production changes.
  • can handle components of complex geometries and different materials with high performance and efficiency.
  • can be tailored for a range of component parts from the same family.
  • The lead-time required for production changeover can be reduced considerably.


FlexType P

ROBO-FLEX-P Robot Handling

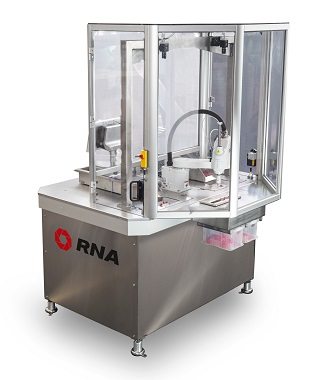

The new flexible FlexType P feeding system with intelligent vibration platforms.

RNA has developed a new, flexible feeding system FlexType P based on our FlexCube 3-axis vibration platform technology.

An intelligent FlexCube/Asycube vibration platform provides a high volume of correctly oriented component parts for the robotic pickup.

Targeted movements in xyz direction can be programmed on a vibration platform. The component parts are moved so efficiently with regards to their nature that a high volume of parts is fed and orientated for the robotic pickup. Compared to the uncontrolled vibration platforms, higher cycles are achieved this way. The free programming of the throw of parts makes it possible to even put up longish parts or to fill chambers that are fixed directly on the plate.

Based on a modular system, RNA also provide double systems, as illustrated, with two vibration plates for independent parallel operation. They are available with optional features like hoppers, quick discharge and recirculation of parts for short retooling times.

Benefits

  • FlexType P can be easily reconfigured to accommodate production changes.
  • FlexType P can handle components of complex geometries and different materials with high performance and efficiency.
  • FlexType P can be tailored for a range of component parts from the same family.
  • No seizing up of parts.
  • The lead-time required for production changeover can be reduced considerably.
  • Economical for medium to low volume assembly.
