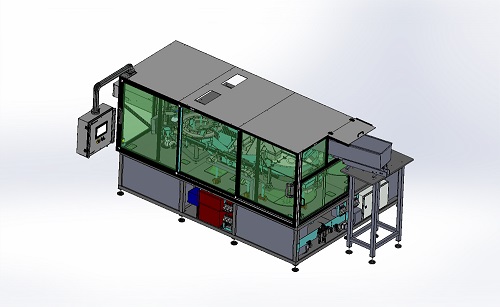

MK360™ Glass Disc Vision Inspection

The automated inspection machine RNA MK360™ is developed specifically for 360° quality inspection. A unique and novel approach to inspecting through the use of a rotating glass disc.

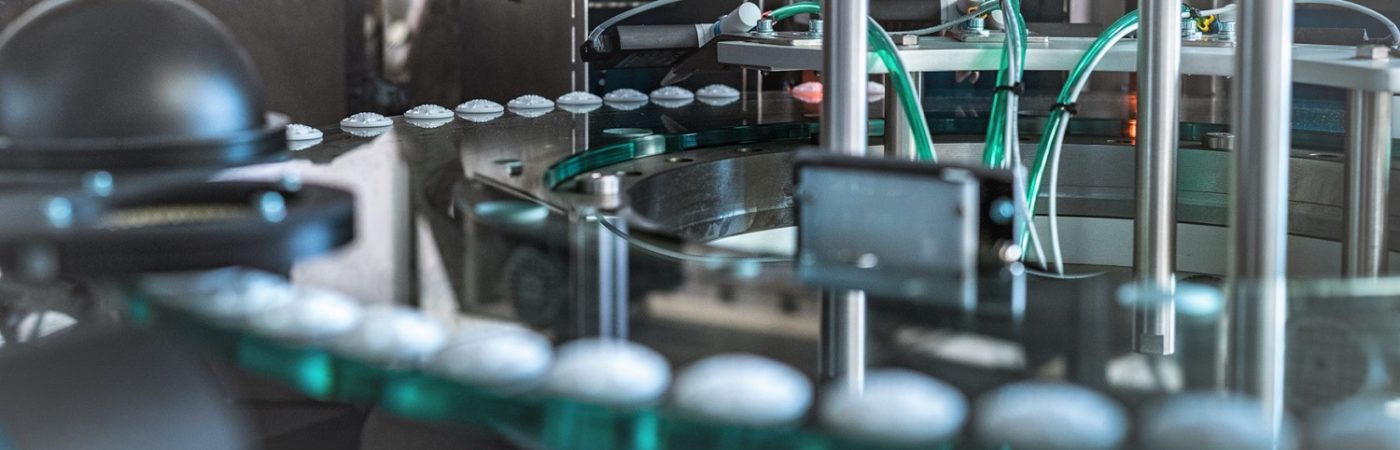

MK360 Accurate Quality Inspection Wheel

Features

- Top, bottom and side inspection
- Quality inspection applications
- Sorting applications
- OCR

We are offering a solution that has high output combined with gentle handling for minimal damage to the product prior to 100% inspection and sorting.

Automated Inspection Machines from RNA Automation

The automated inspection machines are individually tailored to our customer’s specific requirements and their range of component parts which are to be inspected, with appropriate components of the system.

  • Top, bottom and side inspection
  • Quality inspection applications
  • Sorting applications
  • OCR

Included in MK360™

1. RNA Bulk Hopper
RNA Bulk Hopper
1/6

RNA Bulk Hopper

Standard off the shelf or bespoke bulk storage solutions; Various hopper size; Depending on application

Contact us
2. Bowl Feeder/Centrifugal Feeder
3. In-Feed & Return Conveyors
4. Inspection Disc and Vision System
5. Integrated control system with HMI
6. Interlocked guarding
Special requirements are available upon request
RNA Bulk Hopper
1/6

RNA Bulk Hopper

Standard off the shelf or bespoke bulk storage solutions; Various hopper size; Depending on application

Links:

Contact us

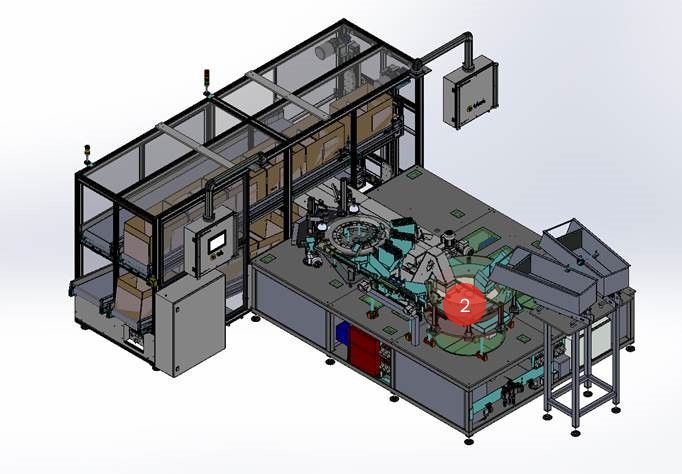

Bowl Feeder/Centrifugal Feeder
2/6

Bowl Feeder/Centrifugal Feeder

RNA supply a wide choice of bowl feeders and centrifugal feeders in many different formats; Various feeder size

Links:

Contact us

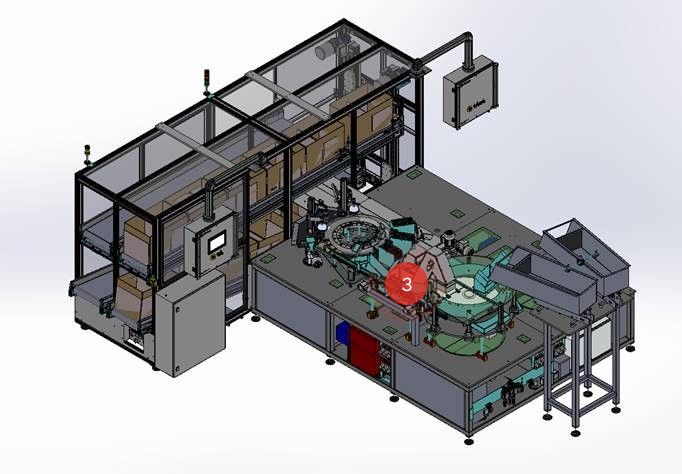

In-Feed & Return Conveyors
3/6

In-Feed & Return Conveyors

Product transportation via a conveyor system onto a rotatig glass disc, where they are presented to the camera system

Links:

Contact us

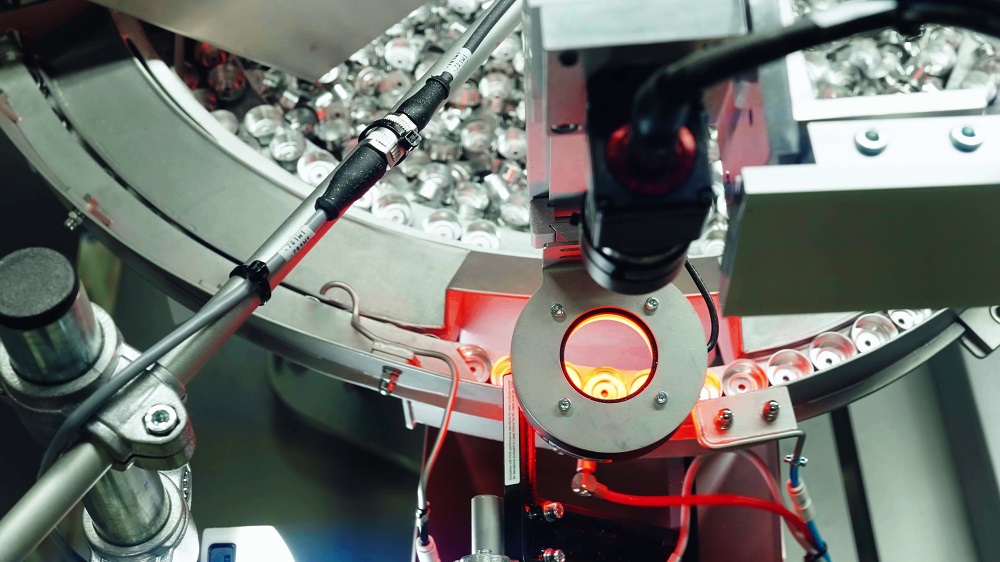

Inspection Disc and Vision System
4/6

Inspection Disc and Vision System

The innovative idea of a “rotating glass disc” allows the inspection from all three planes (top, bottom, side inspection).

Links:

Contact us
Integrated control system with HMI
5/6

Integrated control system with HMI

Easy to use control software for intuitive teaching, configuration and calibration
Contact us

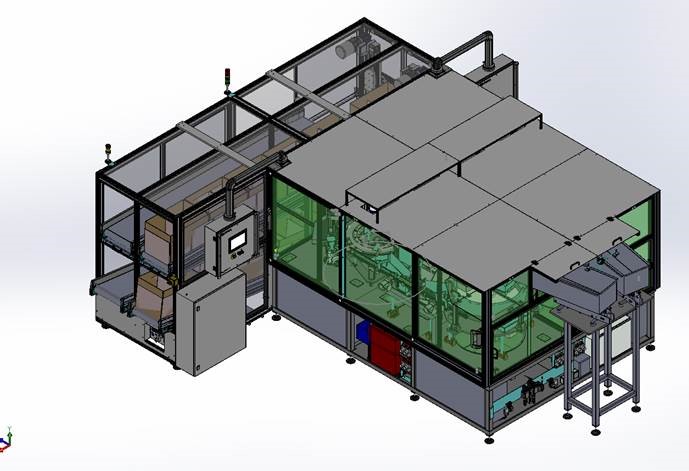

Interlocked guarding
6/6

Interlocked guarding

Contact us
Key Benefits

Ultra fast

High feed rates at over 2000 parts per minute

360° quality inspection

100% inspection and sorting through the use of a rotating disc

Gentle handling

Smooth and gentle handling for minimal damage to the product

Rapid changeover

Minimum changeover between components that are different in size and shape

Cost effective

Cost-saving benefits through reduced labour cost and high throughput

Applications

Vision system integration Vision Solutions for Food & Beverage Industry

Machine Vision Solutions for Food & Beverage Industry

Read More
Automated inspection machine - quality control & vision inspection system to handle & inspect blister packed tablets

High Speed Inspection Machines for Pharmaceuticals Industry

Read More
×

Watch

MK360™ Glass Disc Vision Inspection System Application Videos

MK360™ Glass Disc Vision Inspection

MK360™ Glass Disc Vision Inspection

MK360™ Glass Disc Vision Inspection

Features
Included in MK360™
Downloads
  • Suitable for inspecting a full range of components of different shapes and sizes
  • Various hopper size
  • Various bowl/centrifugal feeder size
  • High performance vision system
  • Up to 6 cameras can be integrated in one system
  • RNA Bulk Hopper (depending on application)
  • Bowl Feeder/Centrifugal Feeder
  • In-Feed & Return Conveyors
  • Inspection Disc and Vision System
  • Integrated control system with HMI (Siemens)
  • Interlocked guarding
