Vibratory Bowl Feeder Handles Fuel Tank Fixing

Written by:

Vibrating bowl feeding and handling system to feed and orientate Fuel Tank Fixings

Feeding and Handling of Fuel tank fixing

Product:
Fuel Tank Fixing

Industry:
Tier 1 Automotive

Performance:
A consistent feed rate of 2 components per minute per outlet via 4 outlets

Product Catalogue:
RNA Bowl Feeders

Send us your enquiry

Operation Description:

Components are loaded into the bowl feeder by a vibrating hopper on demand. The components are fed with the stem below and turned through 180 degrees via a twist track to stand them on the base. A flat tooling area is used to flood parts into four individual lanes (choke feed) and again turned through 180 degrees via “C” chutes to hang the components from the flanges inline all one way. A special linear track that supports 4 lanes pitched to suit the customers pick and place systems feed the parts to dead nests. A hold back cylinder regulates the flow of components when a part is lifted from each nest.

By designing the system this way each track can be used independently with no changeover or adjustment to suit the requirements of the customers cycle times.

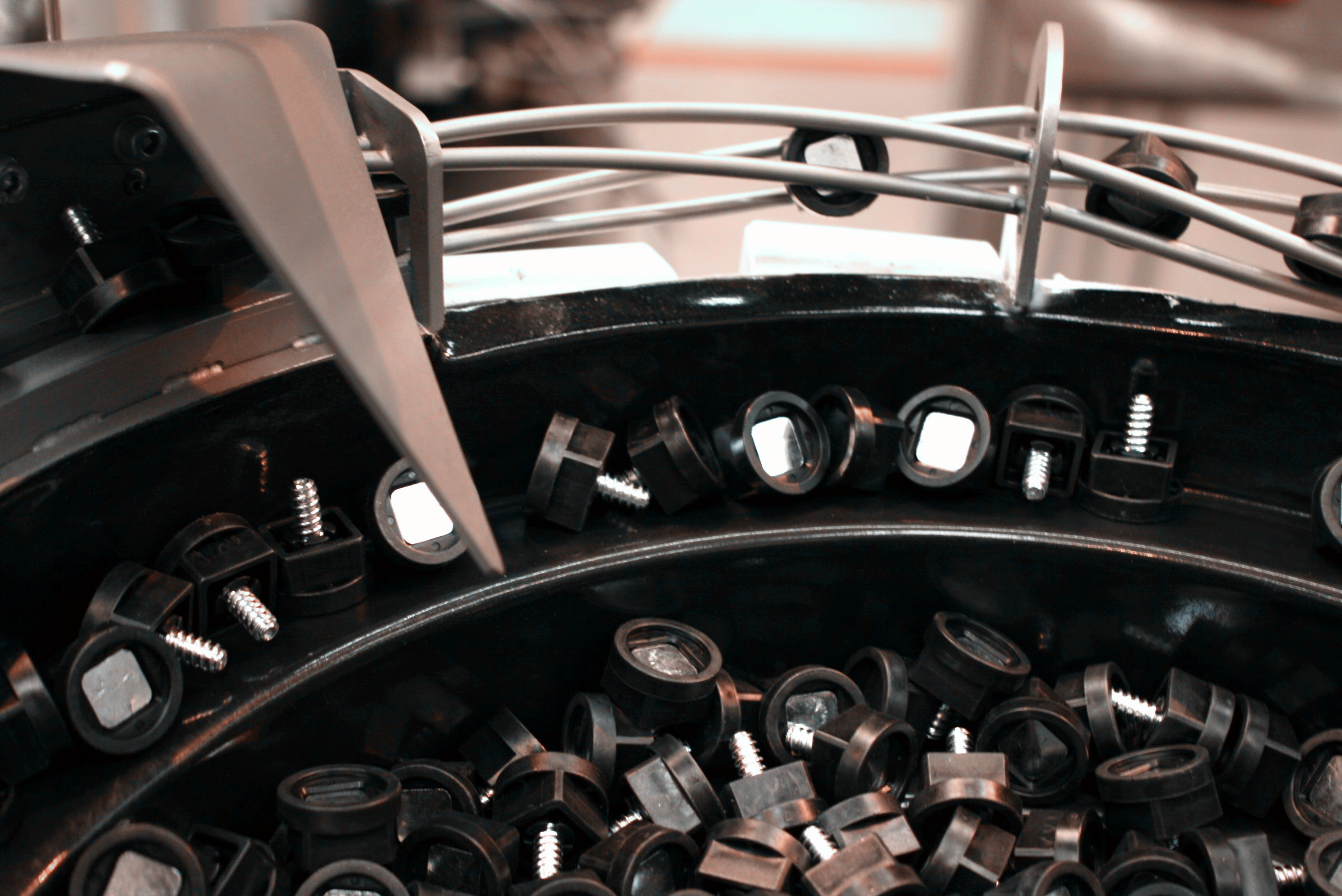

vibratory bowl feeder handles fuel tank fixing
Bowl feeder handles Fuel tank fixing
